Medium-duty Variable Speed Pan-tilt Head HP20

Short Description:

a.Maximum load capacity up to 18Kg/22kg
b.Supports adaptive functions for multiple lens preset positions
c.High repeatability, up to ±0.2°
d.The housing is made of high-strength aluminum alloy die-casting material
e.Adopts high-precision, high-strength gear transmission, self-locking when power is off
f.Horizontal 360° continuous rotation
g.Protection level IP66
h.Optional pan/tilt position value, camera focal length value, focus value and other information feedback functions


Product Detail

Product Tags

Description

The mid-load intelligent variable speed pan-tilt head combines intelligent variable speed, stable tracking and wide compatibility, and is designed for capturing dynamic moments. Its precise speed and angle adjustment ensures smooth and stable images for every frame, and is suitable for a variety of scenes from sports events to artistic performances. It is sturdy and lightweight, suitable for both indoor and outdoor use, and is an ideal assistant for improving shooting quality.

Main Feature

a.Maximum load capacity up to 18Kg/22kg
b.Supports adaptive functions for multiple lens preset positions
c.High repeatability, up to ±0.2°
d.The housing is made of high-strength aluminum alloy die-casting material
e.Adopts high-precision, high-strength gear transmission, self-locking when power is off
f.Horizontal 360° continuous rotation
g.Protection level IP66
h.Optional pan/tilt position value, camera focal length value, focus value and other information feedback functions

Custom Option

1.Load capacity: According to the weight and size of the actual mounted equipment, the mechanical structure and transmission components of the pan-tilt are optimized
2.Rotation angle: The horizontal and vertical rotation angle range of the pan-tilt is customized
3.Rotation speed: The rotation speed of the pan-tilt is flexibly set according to the speed requirements of the actual application scenario
4.Protection level: In dusty and humid outdoor environments, the protection level can be increased to IP66 or even higher to ensure that the internal electronic components and mechanical structure of the pan-tilt are not eroded by dust and rain; in industrial environments with corrosive gases, the pan-tilt housing and internal key components are specially treated with anti-corrosion to enhance the corrosion resistance of the equipment.
5.Communication interface : according to the connected control system or equipment, a variety of communication interfaces are customized, such as RS232, RS485, Ethernet interface, etc., to ensure that the pan-tilt is seamlessly connected with the existing system.
6.Communication protocol: Supports customization of different communication protocols, such as Modbus, ONVIF, etc., to meet the communication needs between different brands of equipment and systems, and realize efficient data transmission and control command interaction.
7.Appearance design: The appearance of the gimbal can be customized according to the customer's brand image or the overall style of the usage scenario, including color, logo, etc., so that the gimbal can be better integrated into the overall environment.
8.Installation method: Provide a variety of installation methods for customization, such as wall mounting, hanging mounting, column mounting, etc. At the same time, special mounting brackets and accessories can be customized according to the on-site installation space and equipment layout to ensure that the gimbal is installed stably and conveniently.

Application

1.Security monitoring ‌
Used for real-time monitoring and tracking of targets, suitable for scenes such as highways and urban security, capable of accurately capturing dynamic targets and ensuring stable images ‌

2.Environmental monitoring ‌
In outdoor environments, equipped with sensors or cameras for the collection and analysis of meteorological, ecological and other data, adapting to complex weather conditions ‌

3.Emergency rescue ‌
At the disaster site, through multi-device collaborative networking, real-time transmission of high-definition images to the command center, support for two-way intercom and positioning functions, and improve rescue efficiency ‌

4.Industrial detection ‌
In the fields of petrochemicals, energy and electricity, equipped with detection equipment to achieve high-precision positioning and intelligent speed control, adapting to harsh industrial environments ‌

5.Film and television shooting ‌
Supports multi-angle shooting and intelligent speed change, suitable for dynamic scenes such as sports events and art performances, ensuring smooth and stable images ‌

6.Radar control and laser applications ‌
Applicable to radar monitoring and laser equipment, providing high load capacity and precise control to meet the needs of professional fields ‌

Specification

Rotation angle Horizontal 0~360° continuous rotation; pitch +20°~-60°;
Preset position 200
Preset position accuracy Up to ±0.2°
Position, focal length, etc. feedback Optional
Auxiliary switch 2 groups, passive, normally open
Lens preset position Support, can adapt to a variety of lenses
Lens control speed Zoom and focus control speed is continuously adjustable
Auto cruise 8 lines, each line can set 10 cruise points
Auto home 1~60 minutes automatic return time can be set
Auto scan 1 line
Communication protocol Pelco-D, Pelco-P optional
Communication baud rate 2400/4800/9600/19200 bps optional
Communication interface RS485 supports angle query feedback (RS422 optional, real-time feedback)
Input power range AC24V±20%,50/60Hz;DC28V±20%
Complete power consumption ≤40W
Operating temperature -25℃~+65℃,90%±3%,non-condensing (optional -40℃~+65℃)
Storage temperature -40℃~+70℃
Loading mode Top load (side load optional)
Protection level IP66
Complete weight 10kg
Dimensions 265mm×180mm×315mm (L×W×H)

Recommend Product Model

PTZ Model Rotation speed Maximum load
HP2018 Horizontal 0.01°~9°/S 18Kg
Pitch 0.01°~4°/S
HP2022 Horizontal 0.01°~9°/S 22Kg
Pitch 0.01°~4°/S

Application picture

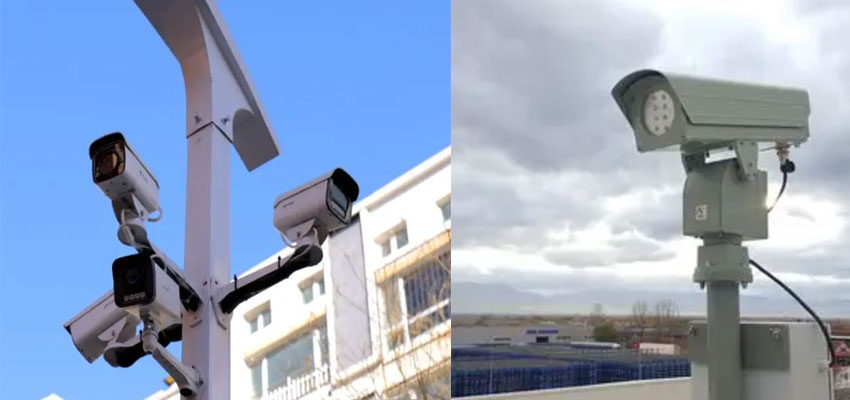

Application-PTZ-picture
