Capsule Slip Ring is an important part of slip ring equipment and plays an important role in modern industrial applications. Below, slip ring manufacturer INGIANT Technology will introduce the definition, working principle and application of Capsule Slip Ring in various fields.

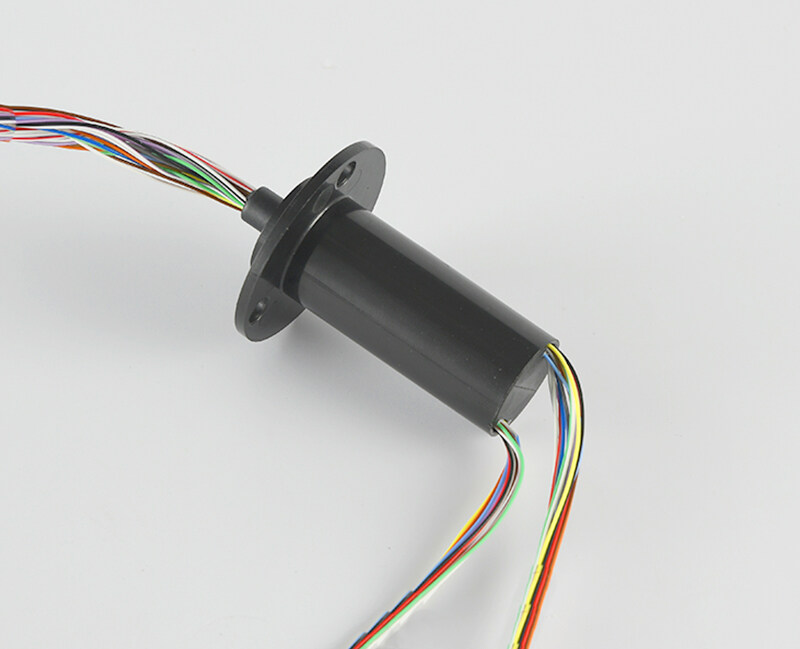

Capsule Slip Ring is a rotary joint used to transmit power, signals and data. It consists of an inner ring and an outer ring. The inner ring is fixed on the rotating part and the outer ring is fixed on the stationary part. Capsule Slip Ring realizes the transmission of current, signals and data through the contact between the metal brush and the inner and outer rings, thereby meeting the communication needs between rotating parts and stationary parts.
The working principle of Capsule Slip Ring is based on electrical contact and sliding contact. When the rotating part starts to turn, the inner ring rotates with it, while the outer ring remains stationary. Metal brushes between the inner and outer rings maintain contact, and through the conductive properties of the brushes, current, signals and data can be transmitted during the rotation. The design of the Capsule Slip Ring ensures the stability and reliability of contact, enabling efficient communication transmission.
Application fields of Capsule Slip Ring
- Machinery manufacturing field: In the machinery manufacturing process, Capsule Slip Ring is widely used in rotating equipment, such as machine tools, winding machines, CNC machine tools, etc. They can transmit electrical energy and signals to realize automated control and monitoring of mechanical equipment.
- Automotive industry: Capsule Slip Ring is widely used in steering systems, air conditioning systems, motor drive systems, etc. in the automotive industry. They can transmit electrical energy and signals, enabling communication and control between various components of the vehicle.
- Wind power field: In wind power generation systems, Capsule Slip Ring is used to transmit electrical energy and signals from wind turbine blades. They enable turbine rotation control and monitoring, improving the efficiency of wind power systems.
- Chemical industry: In the chemical production process, Capsule Slip Ring is widely used in mixing equipment, rotary dryers, etc. They can transmit electrical energy and signals to control and monitor chemical equipment.
As an important part of slip ring equipment, Capsule Slip Ring provides a reliable solution for communication between rotating parts and stationary parts. In applications in different fields, Capsule Slip Ring plays a key role, improving the efficiency and automation level of equipment.
