Introduction to Electrical Slip Rings
Electrical slip rings, often referred to as rotary electrical interfaces or collectors, are ingenious electromechanical devices. Their primary function is to facilitate the transfer of electrical power, signals, or data between a stationary and a rotating part of a machine. This seamless transfer ensures continuous operation without the entanglement of wires, which is crucial for the smooth functioning of various industrial and consumer applications. Whether it's in a high - speed industrial rotary machine or a precision - oriented medical imaging device, electrical slip rings play a pivotal role in maintaining uninterrupted electrical connectivity.
A Glimpse into the History of Electrical Slip Rings
The origins of electrical slip rings can be traced back to the early days of the industrial revolution. As machinery started to incorporate rotating components for more efficient operation, the need for a reliable method to transfer electricity to these moving parts became apparent. Initially, the designs were rather basic, with simple metal - to - metal contacts. However, over time, as technology advanced and industries demanded higher performance and reliability, slip ring technology evolved significantly. In the early 20th century, improvements in materials and manufacturing techniques led to the development of more durable and efficient slip rings. Today, with the advent of modern materials like advanced polymers and high - conductivity metals, electrical slip rings have reached new heights of performance and versatility.
Components That Make Up Electrical Slip Rings
1.Rings
The rings are a fundamental part of the slip ring assembly. Usually made of highly conductive metals such as copper, brass, or in some high - performance applications, precious metals like gold or silver. Copper is a popular choice due to its excellent electrical conductivity and relatively low cost. The rings are mounted on the rotating shaft and are designed to make continuous contact with the brushes. They are carefully machined to ensure a smooth surface finish, which minimizes friction and electrical resistance during operation. In multi - channel slip rings, multiple rings are stacked together, each dedicated to a specific electrical circuit.
2.Brushes
Brushes are the components that slide against the rotating rings to complete the electrical connection. They are typically made of carbon - based materials, graphite - metal composites, or in high - end applications, precious metal alloys. Carbon brushes are widely used because of their self - lubricating properties, which reduce wear and tear on the rings. Graphite - metal composites offer a good balance between electrical conductivity and mechanical strength. Precious metal alloy brushes, on the other hand, are used in applications where extremely low electrical resistance and high reliability are required, such as in aerospace and medical equipment
3.Insulation
Insulation materials are used to separate the different electrical circuits within the slip ring. This prevents short - circuits and ensures the proper functioning of each channel. Common insulation materials include high - temperature plastics like polyetheretherketone (PEEK), epoxy resins, and ceramic materials. PEEK is favored for its excellent mechanical and chemical resistance, as well as its ability to withstand high temperatures. Epoxy resins are widely used for their good insulating properties and ease of application. Ceramic insulation is often used in high - voltage and high - temperature applications due to its superior electrical and thermal properties.

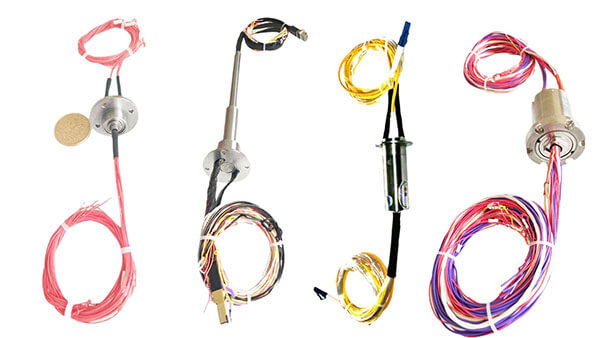

Different Types of Electrical Slip Rings
1.Through - Bore Slip Rings
Through - bore slip rings are characterized by a central hole or bore through which a shaft or other components can pass. This design allows for a more compact and integrated solution in applications where space is limited. They are commonly used in applications such as robotics, where the slip ring can be mounted directly on the robot's joint, enabling the transfer of power and signals while allowing the joint to rotate freely. Through - bore slip rings can handle a wide range of electrical currents and signal types, making them highly versatile.
2.Pancake Slip Rings
Pancake slip rings have a flat, disc - like shape, which makes them ideal for applications where a low - profile design is required. Their compact size and lightweight construction make them suitable for use in equipment such as cameras, where minimizing the weight and space occupied is crucial. Pancake slip rings can be designed to handle both power and signal transmission, and they are often used in applications where the rotational speed is relatively high.
3.High - Speed Slip Rings
As the name implies, high - speed slip rings are designed to operate at extremely high rotational speeds. These slip rings require specialized materials and designs to handle the high centrifugal forces and frictional heat generated at high speeds. They often use advanced bearing systems to reduce vibration and ensure smooth rotation. High - speed slip rings are commonly used in applications such as high - speed spindles in machine tools, where the ability to transfer electrical power and signals accurately at high rotational speeds is essential for proper operation.
4.Fiber Optic Slip Rings
Fiber optic slip rings are used to transmit optical signals between a stationary and a rotating part. Instead of electrical conductors, they use optical fibers to transfer data at high speeds with extremely low signal loss. Fiber optic slip rings are crucial in applications such as satellite communication dishes, where high - bandwidth data transmission is required while the dish is rotating. They offer advantages such as immunity to electromagnetic interference, high data transfer rates, and long - distance signal transmission capabilities.
Materials Employed in Electrical Slip Rings
1.Metals for Conductivity
As mentioned earlier, metals like copper, brass, gold, and silver are widely used in the construction of slip ring rings. Copper, with its high electrical conductivity (second only to silver among common metals), is the most commonly used base metal. Brass, an alloy of copper and zinc, is also used due to its good electrical properties and better corrosion resistance compared to pure copper. Gold and silver are used in applications where extremely low electrical resistance and high reliability are essential. Gold, for example, has excellent resistance to oxidation and corrosion, making it suitable for use in sensitive electronic equipment and aerospace applications.
2.Insulating Materials
In addition to the materials mentioned in the components section, other insulating materials such as Teflon (polytetrafluoroethylene) are also used. Teflon has excellent electrical insulating properties, high chemical resistance, and a low coefficient of friction. This makes it suitable for use in applications where the slip ring may be exposed to harsh chemicals or where reducing friction between moving parts is important. Another material, fiberglass - reinforced plastics, is often used in the construction of slip ring housings. These materials offer a good balance between mechanical strength, electrical insulation, and cost - effectiveness.
Working Principle of Electrical Slip Rings
At their core, electrical slip rings operate on a relatively simple principle. When the rotating part of the machine is in motion, the brushes maintain continuous contact with the rotating rings. As the rings rotate, the electrical current or signal is transferred from the stationary source to the rotating part through the brushes and rings. In the case of multi - channel slip rings, each ring - brush combination is dedicated to a specific electrical circuit. The design of the slip ring ensures that the electrical connection remains stable and reliable, even at high rotational speeds and in challenging operating environments. For fiber optic slip rings, the optical signals are transferred through a rotating joint that uses specialized optical components to maintain the alignment of the optical fibers, allowing for the seamless transmission of data.
Manufacturing and Installation of Electrical Slip Rings
1.Manufacturing Process
The manufacturing of electrical slip rings requires precision engineering and advanced manufacturing techniques. The rings are typically machined from high - quality metal rods or sheets to ensure tight dimensional tolerances. The surface of the rings is then polished to a high finish to minimize friction and electrical resistance. The brushes are carefully fabricated to ensure proper contact with the rings. In the case of carbon brushes, the carbon material is molded into the desired shape and then impregnated with metals or other additives to enhance its electrical and mechanical properties. The insulation materials are applied or molded around the rings and brushes to separate the different electrical circuits. Quality control checks are carried out at every stage of the manufacturing process, including electrical testing, dimensional inspection, and mechanical performance testing.
2.Installation
Installing an electrical slip ring correctly is crucial for its optimal performance. First, the slip ring needs to be carefully aligned with the rotating shaft. This often involves using precision - machining techniques to ensure a proper fit. The brushes are then installed in such a way that they make uniform contact with the rings. In some cases, pre - loaded springs may be used to ensure consistent brush pressure. The electrical connections to the slip ring are made using appropriate cables and connectors, ensuring that the electrical paths are secure and properly insulated. After installation, the slip ring assembly should be tested to ensure that there are no electrical faults and that the rotation is smooth.
Factors Influencing the Price of Electrical Slip Rings
1.Materials Used
The type of materials used in the construction of electrical slip rings has a significant impact on their price. Slip rings made with high - quality metals like gold or silver, or those using advanced insulation materials, will be more expensive than those made with standard materials such as copper and common plastics. For example, a gold - plated slip ring designed for use in a high - end medical imaging device will cost significantly more than a copper - based slip ring used in a basic industrial application.
2.Complexity of Design
The complexity of the slip ring design also affects its price. Multi - channel slip rings with a large number of electrical circuits or those that are designed to handle a combination of power, signals, and data will be more expensive than simple single - channel slip rings. Additionally, slip rings with specialized features such as high - speed capabilities, low - noise operation, or built - in sensors for monitoring performance will also command a higher price.
3.Quantity Ordered
As with most products, the quantity ordered can influence the price of electrical slip rings. Buying in bulk usually results in a lower unit cost. Manufacturers often offer volume discounts to customers who place large orders. This can be particularly beneficial for companies that require a large number of slip rings for their production lines or for large - scale industrial projects.
How to Select the Right Electrical Slip Ring
1.Operating Conditions
Consider the operating conditions of the equipment where the slip ring will be used. Factors such as rotational speed, temperature, humidity, and the presence of contaminants in the environment are important. For high - speed applications, a high - speed slip ring designed to handle the specific rotational speed range should be selected. In harsh environmental conditions, slip rings with appropriate sealing and corrosion - resistant materials should be chosen. For example, in a marine environment, a slip ring with a waterproof design and corrosion - resistant materials like stainless steel or special alloys should be used.
2.Electrical Requirements
Evaluate the electrical requirements of the application, including the amount of power to be transferred, the type of signals (analog or digital), and the data transfer rate. If the application requires the transfer of high - voltage or high - current power, a slip ring with the appropriate voltage and current ratings should be selected. For applications that involve the transmission of high - speed data, a slip ring with the necessary bandwidth and signal integrity capabilities, such as a fiber optic slip ring or a high - performance electrical slip ring designed for data transfer, should be considered.
3.Mechanical Considerations
Mechanical factors such as the size and shape of the slip ring, as well as its mounting method, are also important. The slip ring should be compatible with the available space in the equipment and should be easy to install and maintain. In some cases, a through - bore slip ring may be the best choice if there is a need to pass a shaft through the slip ring. For applications where a low - profile design is required, a pancake slip ring may be more suitable.
Renowned Manufacturers and Suppliers of Electrical Slip Rings
1.In the United States
In the United States, companies like Moog are well - known for their high - quality electrical slip rings. Moog offers a wide range of slip ring products, from basic single - channel models to complex multi - channel and high - speed slip rings. They have state - of - the - art manufacturing facilities and a team of experienced engineers who are constantly innovating to develop new and improved slip ring designs. Another notable US - based company is Slip Ring Innovations. They specialize in providing custom - designed slip rings for a variety of industries, including aerospace, defense, and industrial automation. Their products are known for their reliability and performance in demanding applications.
2.In China
China has also emerged as a major player in the electrical slip ring market. Companies such as Ingiant technology produce a diverse range of slip rings at competitive prices. ingiant offers a comprehensive product line that includes through - bore slip rings, pancake slip rings, and fiber optic slip rings. They have been investing in research and development to improve the quality and performance of their products, making them suitable for both domestic and international markets. Another Chinese manufacturer, Shenzhen moflon Technology Co., Ltd., focuses on providing high - performance slip rings for applications such as robotics, medical equipment, and industrial machinery. Their products are known for their durability and cost - effectiveness.
Applications of Electrical Slip Rings
1.Industrial Machinery
In industrial machinery, electrical slip rings are used in a wide variety of applications. In rotary tables, they enable the continuous transfer of power and signals to the rotating table, allowing for precise positioning and operation. In wind turbines, slip rings are used to transfer electrical power generated by the rotating blades to the stationary power grid. They are also used in conveyor systems, where they ensure the smooth operation of rotating components such as pulleys and rollers.
2.Medical Equipment
In the medical field, electrical slip rings play a crucial role in devices such as CT scanners and MRI machines. In CT scanners, slip rings enable the continuous rotation of the X - ray source and detector, allowing for the acquisition of high - quality cross - sectional images. In MRI machines, slip rings are used to transfer power and signals to the rotating components of the scanner, ensuring accurate and stable imaging.
3.Aerospace and Defense
In aerospace and defense applications, electrical slip rings are used in aircraft engines, missile guidance systems, and satellite communication systems. In aircraft engines, slip rings are used to transfer power and signals to rotating components such as sensors and actuators. In missile guidance systems, they enable the continuous transfer of data between the stationary and rotating parts of the missile, ensuring accurate navigation. In satellite communication systems, slip rings are used to allow the satellite's antennas to rotate freely while maintaining a stable communication link with the ground.
Standards Governing Electrical Slip Rings
There are several international and national standards that regulate the design, manufacturing, and performance of electrical slip rings. For example, the International Electrotechnical Commission (IEC) has developed standards related to the electrical safety and performance of electromechanical devices, which also apply to electrical slip rings. These standards cover aspects such as insulation resistance, voltage withstand capabilities, and electromagnetic compatibility. In the United States, the Underwriters Laboratories (UL) sets standards for the safety of electrical products, including slip rings. Adhering to these standards ensures that electrical slip rings are safe, reliable, and suitable for use in a wide range of applications.
- Advantages
- Continuous Power and Signal Transfer: Electrical slip rings enable the continuous transfer of power and signals between stationary and rotating parts, which is essential for the operation of many machines. This allows for uninterrupted operation without the need to stop and reconnect wires, increasing productivity.
- Versatility: They are highly versatile and can be used in a wide range of applications, from low - power consumer electronics to high - power industrial machinery. Different types of slip rings can be designed to handle various electrical requirements, including high - voltage, high - current, and high - speed data transfer.
- Reliability: With proper design and maintenance, electrical slip rings can provide reliable performance over a long period. High - quality materials and precision manufacturing techniques ensure that they can withstand the rigors of continuous operation, even in challenging environments.
- Disadvantages
- Friction and Wear: The brushes and rings in electrical slip rings are subject to friction and wear during operation. Over time, this can lead to reduced performance and the need for maintenance or replacement. However, advancements in materials and design have significantly reduced this issue in modern slip rings.
- Electrical Noise: In some applications, electrical slip rings can generate electrical noise, which may interfere with sensitive electronic equipment. Special designs and shielding techniques are often used to minimize this problem, but it can still be a concern in certain high - precision applications.
Key Characteristics of High - Quality Electrical Slip Rings
- Low Electrical Resistance
- High - quality electrical slip rings are designed to have low electrical resistance. This ensures that there is minimal power loss during the transfer of electrical current, resulting in more efficient operation. Low resistance also helps to prevent overheating of the slip ring, which can extend its lifespan.
- High Rotational Speed Capability
- For applications that require high - speed rotation, a high - quality slip ring should be able to handle the rotational speed without sacrificing performance. This requires careful design of the bearing system, selection of appropriate materials, and optimization of the brush - ring contact to reduce vibration and wear at high speeds.
- Excellent Sealing and Protection
- In harsh environments, high - quality electrical slip rings are equipped with excellent sealing mechanisms to protect against dust, moisture, and other contaminants. This ensures reliable operation even in challenging conditions and helps to prevent premature failure due to environmental factors.
Frequently Asked Questions about Electrical Slip Rings
Q1:How long do electrical slip rings typically last?
A1:The lifespan of electrical slip rings depends on several factors, including the operating conditions, the quality of the materials used, and the maintenance schedule. In general, with proper use and maintenance, a well - designed slip ring can last for several years. However, in high - wear applications or in harsh environments, the lifespan may be shorter. Regular inspection and replacement of worn - out components, such as brushes, can help to extend the lifespan of the slip ring.
Q2:Can electrical slip rings be repaired?
A2:In many cases, electrical slip rings can be repaired. Minor issues such as worn - out brushes or damaged insulation can often be fixed by replacing the affected components. However, in cases of severe damage to the rings or other critical components, it may be more cost - effective to replace the entire slip ring. Professional repair services are available that can diagnose and fix problems with electrical slip rings
