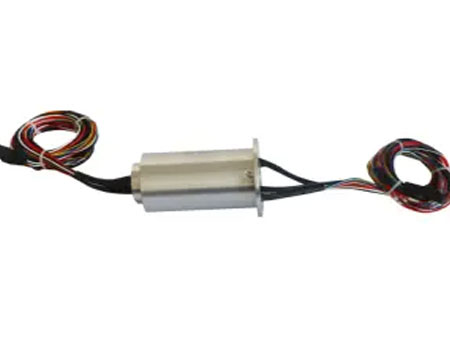

What is an Ethernet Slip Ring?
An Ethernet slip ring is a remarkable electro-mechanical component that serves as a crucial link for seamless data transmission in rotating systems. It is meticulously designed to handle Ethernet signals with a frequency of up to 250MHz, making it ideal for transmitting 100M/1000M Ethernet signals. This specialized slip ring enables the simultaneous transmission of power and signals, along with multiple low-frequency signals and currents, thereby offering enhanced functionality and flexibility for various applications.
Working Principle of Ethernet Slip Ring
The working principle of an Ethernet slip ring is both fascinating and intricate. At its core, it resembles the operation of a traditional conductive slip ring, consisting of a stator and a rotor. These components are ingeniously designed with single-channel precise superposition, and the number of superimposed circuits is determined based on specific operational requirements. During assembly, the stator channels are precisely aligned with the rotor channels, creating independent electrical paths. This meticulous design allows Ethernet signals to be transmitted smoothly, while also enabling the mixed transmission of power channels and signal channels. It's like a well-choreographed dance of electrons, ensuring that data flows without interruption even as the connected equipment rotates continuously.

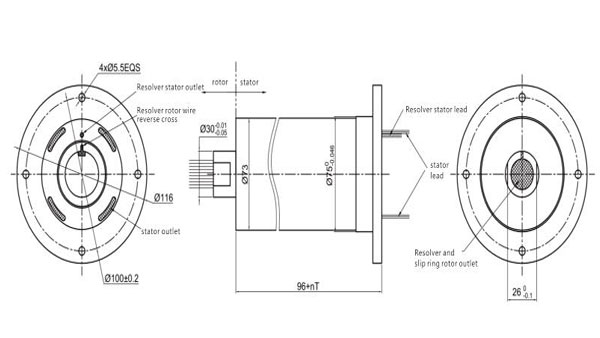

Working Principle Picture 1.1
Typical Applications of Ethernet Slip Ring
The applications of Ethernet slip rings are vast and diverse, spanning across multiple industries. In the realm of industrial automation, they are the unsung heroes that enable robots, drones, and collaborative machines to operate with precision. For instance, in an automated production line, the Ethernet slip ring allows a robotic arm to rotate freely while maintaining a stable and reliable connection to the control system, ensuring seamless operation and accurate task execution.
In the renewable energy sector, Ethernet slip rings play a pivotal role in wind turbines and solar trackers. They facilitate the transmission of crucial data and power, enabling these systems to function optimally even in the harshest environmental conditions. In a wind turbine, as the rotor spins, the Ethernet slip ring ensures that the data related to wind speed, direction, and turbine performance is transmitted accurately to the control center, allowing for efficient power generation.
The medical field also reaps the benefits of Ethernet slip rings. In surgical robots and imaging equipment, they provide the necessary connectivity, allowing for precise control and real-time data transfer. This ensures the accuracy and reliability of medical procedures, enhancing patient care and safety.

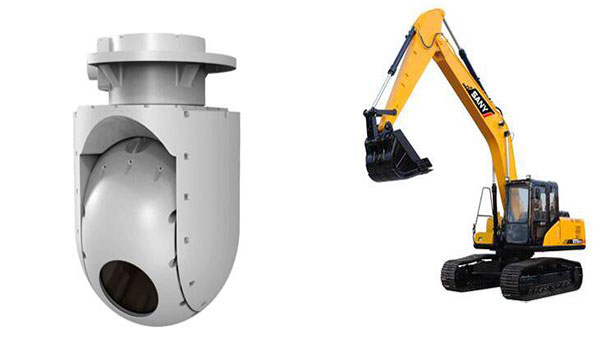

Industry Application Picture 2.1
Installation Methods of Ethernet Slip Ring
The proper installation of an Ethernet slip ring is of utmost importance to ensure its optimal performance. There are several installation methods to consider, depending on the specific type of slip ring and the application requirements.
For flange cap-type slip rings, which are compact and widely used for transmitting weak control signals, the installation is relatively straightforward. These slip rings are typically installed by matching the holes on the flange with the corresponding mounting points on the equipment using screws and washers. The washers serve to protect the flange from excessive force, and if a locking washer is used, a flat washer should be placed between it and the flange.
For slip rings without a flange, the most common approach is to insert the main body of the slip ring into a slightly larger hole and then secure it using methods such as fixing screws, adhesives, or O-rings. Additionally, when installing the rotor, it is essential to use a flexible drive coupling, such as a rubber tube, a heat-shrink tube, or an elastic coupling, to accommodate any differences in the rotation axis of the components. This helps to ensure smooth rotation and minimize stress on the slip ring.
Signal Types Transmitted by Ethernet Slip Ring
Ethernet slip rings are primarily designed to transmit Ethernet signals, which can be categorized into different types based on their speed, such as 100Mbps and 1000Mbps Ethernet signals. These high-speed digital signals form the backbone of modern data communication networks, enabling the rapid transfer of large amounts of data between devices.
In addition to Ethernet signals, many Ethernet slip rings also support the transmission of other types of signals, such as power signals, multiple low-frequency signals, and currents. This ability to handle a combination of different signal types makes Ethernet slip rings highly versatile and suitable for a wide range of applications where both data and power need to be transmitted simultaneously.
How to Select an Ethernet Slip Ring
Selecting the right Ethernet slip ring requires careful consideration of several factors to ensure optimal performance and compatibility with the specific application.
First and foremost, it is essential to determine the required bandwidth based on the data transfer requirements of the application. If the application involves the transmission of large amounts of data, such as high-definition video or real-time sensor data, a higher bandwidth Ethernet slip ring, such as a 1000Mbps model, may be necessary.
The number of channels required is another crucial factor. Depending on the complexity of the system and the number of signals that need to be transmitted simultaneously, an Ethernet slip ring with an appropriate number of channels should be selected. Some applications may require only a single Ethernet channel, while others may demand multiple channels for transmitting different types of data.
Environmental factors also play a significant role in the selection process. If the Ethernet slip ring will be installed in a harsh environment with extreme temperatures, humidity, dust, or vibration, it is essential to choose a model that is specifically designed to withstand such conditions. Slip rings with robust construction and appropriate sealing mechanisms are better suited for such applications.
Finally, compatibility with the existing equipment and systems is vital. The selected Ethernet slip ring should be compatible with the Ethernet standards and protocols used in the application, as well as with the mechanical and electrical interfaces of the connected devices. This ensures seamless integration and reliable operation without any compatibility issues.
Frequency Asked Questions ?
Q: What should I do if the signal is interrupted or unstable when the Ethernet slip ring transmits data?
A: First, check whether the transmission line is aging, damaged or in poor contact, such as loose plugs, falling solder joints, etc., and replace the line or re-weld in time. Secondly, the internal brushes of the slip ring and the ring track will wear out due to long-term friction, which will affect the contact effect. The severely worn parts should be checked and replaced regularly. In addition, if it is in a strong electromagnetic interference environment, it is necessary to check whether the shielding measures of the slip ring are in place. You can add a shielding layer or use a slip ring with better shielding performance.
Q: What is the reason why the Ethernet slip ring transmission rate does not meet the standard?
A: On the one hand, it may be that the bandwidth of the slip ring itself is limited and cannot meet the needs of high-speed data transmission. At this time, a slip ring with higher bandwidth needs to be replaced. On the other hand, resource competition occurs in other devices or software in the system, such as network congestion, insufficient device memory, etc., which will reduce the actual transmission rate. It is necessary to optimize the network configuration and increase the device memory.
Q: How to solve mechanical failures of Ethernet slip rings, such as wear, jamming and abnormal noise?
A: Wear is mainly caused by continuous friction between the brush and the ring, poor wear resistance of the material or poor lubrication conditions, as well as frequent forward and reverse rotation, high speed operation, and excessive load. You should choose materials with good wear resistance and ensure good lubrication, while avoiding overload operation. Jamming and abnormal noise may be caused by insufficient assembly accuracy of internal parts, or dust and impurities entering the slip ring, which requires reassembly or cleaning of internal impurities.
Q: What should be paid attention to during the installation of Ethernet slip rings?
A: During installation, ensure that the slip ring is firmly connected to the equipment and the installation position is accurate to avoid additional vibration and stress during operation. At the same time, the wiring should be reasonable to avoid cables that are too long and entangled, and reduce the risk of signal attenuation and interference.
Q: How to choose an Ethernet slip ring that is compatible with the device?
A: It is necessary to ensure that the slip ring supports the Ethernet standard and communication protocol used by the device. If the device uses the 1000 Base-T Ethernet standard, the slip ring must also support this standard. In addition, when different brands or models of equipment are matched with slip rings, it is necessary to pay attention to the differences in electrical characteristics. You can refer to the technical specifications of the equipment and slip rings, or consult ingiant engineers.
Q: What are the effects of environmental factors on Ethernet slip rings?
A: High temperature will change the performance of the internal materials of the slip ring and reduce the insulation performance, while low temperature may make the material brittle. Therefore, it is necessary to select a suitable slip ring according to the actual working environment temperature and take corresponding heat dissipation or insulation measures. When the humidity is high, the slip ring is susceptible to moisture, and moisture-proof treatment such as sealing protection should be done. Dust or corrosive gases in the working environment will aggravate wear and corrosion of metal parts. It is necessary to select slip rings with a high protection level and clean and maintain them regularly.
