In the rolling tide of industrial technology, slip rings, as the core component to achieve stable electrical connection between the moving and static parts of rotating equipment, are becoming more and more important. High voltage slip rings play an indispensable role in the automation industry due to their excellent performance in high voltage transmission scenarios. Next, let us explore the mystery of high-voltage slip rings from all aspects.
Ⅰ. What is a high voltage slip ring?
A high voltage slip ring is essentially a special electrical connection device used to transmit high voltage power and various signals between stationary and rotating parts. Compared with ordinary slip rings, it has almost stringent requirements on safety, stability and insulation. In actual application scenarios, its operating voltage can easily reach thousands of volts or even higher, which is a key link in ensuring the stable operation of various high voltage equipment.
Ⅱ. The structure and operation logic of high voltage slip rings
1. Structural composition
The high-voltage slip ring is composed of multiple key parts. The conductive ring is usually made of highly conductive materials such as copper alloy and silver alloy, which can achieve efficient transmission of current and reduce the loss during transmission. The brush is made of materials with good conductivity and wear resistance such as graphite and metal graphite. When the equipment is running, the brush fits tightly with the conductive ring to maintain a stable electrical connection and ensure uninterrupted signal and power transmission. Considering that high-voltage current is very likely to cause dangerous phenomena such as short circuit and discharge, the high-voltage slip ring uses high-performance insulating materials such as polytetrafluoroethylene and epoxy plastic to effectively isolate each conductive part. The outer shell is made of metal or high-strength engineering plastic, which not only provides reliable mechanical support for internal components, but also has dustproof, waterproof and other protective functions, protecting the internal structure of the equipment in all directions.
2. Working principle
When the equipment is running, the various components of the high-voltage slip ring work together. The rotating parts drive the conductive ring to rotate synchronously, and the brushes are fixed and continue to fit tightly with the conductive ring. During the sliding process of the two, a stable electrical path is constructed, smoothly transmitting power and signals from the stationary parts to the rotating parts.
In view of the particularity of the high-voltage operating environment, the high-voltage slip ring is designed with emphasis on optimizing the insulation and heat dissipation links. On the one hand, the risk of leakage and short circuit is reduced by using multi-layer insulation materials; on the other hand, the heat generated by the operation is discharged in time by using technologies such as heat dissipation fins, which fully guarantees the safe and stable operation of the equipment in a high-voltage environment, greatly extending the service life of the equipment.
Ⅲ. Advantages of high voltage slip rings
1. Powerful high-voltage transmission capability
The most prominent advantage of high-voltage slip rings is that they can carry thousands of volts or even higher voltages, meet the stringent requirements of high-voltage equipment such as wind power generation and medical imaging, and provide power guarantee for the stable operation of related equipment.
2. Excellent insulation performance
With advanced insulation materials and design processes, high-voltage slip rings can effectively reduce the risk of leakage and short circuits, just like putting on a layer of solid protective clothing for the equipment, laying a solid foundation for the safe operation of the equipment in a high-voltage environment.
3. Excellent durability
With high-quality materials and exquisite manufacturing processes, high-voltage slip rings can withstand long-term mechanical stress and heat load, reduce the maintenance frequency of equipment, significantly extend the overall service life of the equipment, and save a lot of maintenance costs and time costs for enterprises.
4. Flexible customized design
High-voltage slip rings can be customized according to the specific requirements of different industries and different equipment, such as the number of circuits, voltage levels, physical dimensions, etc., greatly improving the adaptability and operating efficiency of the equipment.
IV. Application scenarios of high voltage slip rings
1. Wind power generation

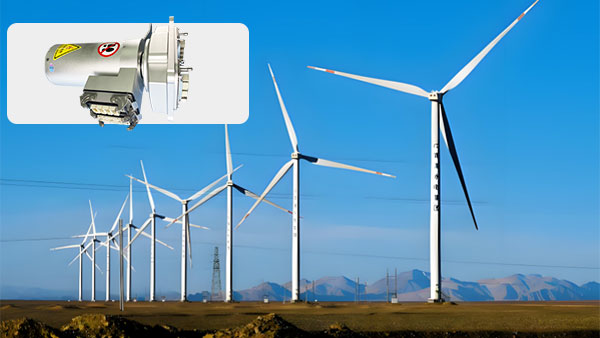

In wind turbines, high-voltage slip rings are responsible for transmitting the electrical energy generated by the rotating blades to the stationary cabin, providing support for the stable operation of the entire power generation system and promoting the efficient conversion and utilization of clean energy.
2. Medical equipment
In large medical equipment such as CT scanners and MRI equipment, high-voltage slip rings ensure the precise operation of high-voltage imaging systems, help doctors obtain clear diagnostic images, and provide strong support for the precise treatment of patients.
3. Industrial machinery
In rotating workbenches, industrial robots and other equipment in automated production lines, high-voltage slip rings achieve stable transmission of power and signals, greatly improving the automation level and production efficiency of industrial production.
4. Aerospace and defense
In aircraft radar antennas, missile launchers and other equipment, high-voltage slip rings bear the heavy responsibility of transmitting high voltage and complex signals, and play an irreplaceable and key role in ensuring national security.
Ⅴ. Differentiate between high-voltage slip rings and low-voltage slip rings
1. Voltage capacity
High-voltage slip rings are designed for high-voltage transmission and are mainly used in high-voltage scenarios such as wind power generation and medical imaging; low-voltage slip rings mainly serve low-voltage fields such as consumer electronics and small industrial equipment.
2. Insulation requirements
Due to the difference in working voltage, high-voltage slip rings have more stringent requirements on insulation performance and require special insulation materials and design processes; low-voltage slip rings have relatively lower insulation requirements.
3. Application scenarios
High-voltage slip rings are mostly used in large equipment with extremely high requirements for safety and stability; low-voltage slip rings are more used in small equipment that is more sensitive to cost.
4. Size and complexity
Usually, high-voltage slip rings are larger in size and more complex in structure; low-voltage slip rings are relatively small and simple in structure.
VI. Selection of high-voltage slip rings
1. Voltage and current requirements
Select suitable high-voltage slip rings according to the actual working voltage and current of the equipment to avoid equipment damage caused by overload and ensure stable operation of the equipment.
2. Insulation performance
Prioritize products with good insulation performance and compliance with relevant safety standards to fully guarantee the safety of equipment operation.
3. Durability
Choose high-voltage slip rings made of high-quality materials and advanced manufacturing processes to reduce equipment maintenance costs and downtime and improve the overall efficiency of the equipment.
4. Customized services
For equipment with special needs, ingiant technology can provide customized services to ensure that the slip rings are perfectly matched with the equipment and maximize the efficiency of the equipment.
Conclusion
As a core component in the industrial field, high voltage slip rings have greatly promoted the technological upgrading of the automation industry. By deeply understanding its principles, characteristics and applications, we can better select and use high voltage slip rings, injecting strong power into the stable operation of equipment and the improvement of production efficiency.
