Hydraulic Rotary Joint Full Analysis: Selection, Application and Maintenance

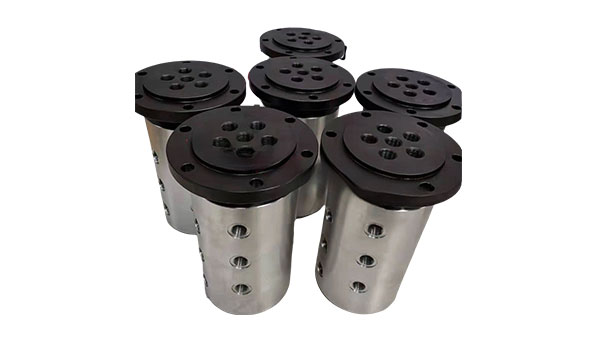

5-Channel-Hydraulic-Rotary-Joint

ingiant technology   |  Industry new  | March 26.2025

In the complex and huge industrial production system, the hydraulic rotary joint is like a "screw" running silently, but it is the key to supporting the stable operation of various equipment. From the operating ships breaking through the waves in the deep sea to the wind turbines standing in the clouds; from the automobile production lines running at high speed against time to the vast irrigation systems that nourish thousands of acres of fertile fields, the hydraulic rotary joint plays an irreplaceable role. Next, let us analyze all aspects of the hydraulic rotary joint in depth to help you fully understand this important industrial "partner".

1. What is a hydraulic rotary joint?

The hydraulic rotary joint is called the "fluid bridge" in industrial machinery. It can continuously and stably transmit fluids under high pressure, while ensuring that the equipment can rotate freely. Taking large-scale ship loading and unloading equipment at ports as an example, when the boom of the crane performs a 360-degree rotation operation, the hydraulic rotary joint takes on the responsibility of accurately delivering the high-pressure oil of the hydraulic station to each actuator of the boom, providing a solid guarantee for the smooth progress of loading and unloading operations. It is mainly composed of input components and output components. The two work closely together to effectively ensure that the fluid is smoothly transmitted during the transmission process without any turbulence, greatly improving the operating efficiency of the equipment.

2. Materials and design determine performance

1. Manufacturing materials
The manufacturing materials of hydraulic rotary joints, like the cornerstone of a building, directly lay the foundation for its performance and applicable scenarios. Common structural materials include carbon steel, stainless steel and brass. Carbon steel has low cost and high strength, and is widely used in conventional industrial scenarios where corrosion resistance is not high; stainless steel, with its excellent corrosion resistance, is the leader in environments such as food processing and marine operations that require strict hygiene and corrosion resistance; brass has good thermal conductivity and processing performance, and is often used in small equipment with high precision requirements. In addition, sealing materials such as Viton, Nitrile, PTFE, etc. are also very important. Viton has excellent high temperature resistance and oil resistance, Nitrile is cost-effective and has good comprehensive performance, and PTFE has excellent chemical stability.
2. Design features
From the design level, the advantages of hydraulic rotary joints are fully demonstrated. Its compact structure takes up very little space, making it easy to install in various equipment with cramped spaces. At the same time, it is easy to maintain. Many rotary joints adopt modular design. Once a component fails, it can be quickly replaced, greatly shortening the equipment downtime. In addition, it has strong compatibility and can seamlessly connect with various hydraulic systems to calmly cope with complex and changing working environments.

3. Technical specifications and practical applications

1. Key technical parameters
The technical specifications of hydraulic rotary joints are crucial. In terms of working pressure, some high-performance products can reach 6000PSI, which is enough to meet the stringent requirements of high-pressure working environments such as oil extraction; the temperature adaptability range is generally between -40℃ and 200℃, and it can cope with both extremely cold and high temperature conditions; the size specifications range from 1/8 inch to 10 inches, which can be adapted to equipment of various sizes; and it can transmit a variety of media such as oil, steam, water and gas, fully meeting the transmission needs of different industries.
2. Application industries
In the maritime field, hydraulic rotary joints "escort" the deck machinery of ships, such as anchor machines, capstans and other equipment, to ensure that ships can operate stably in harsh marine environments; in the manufacturing industry, the mechanical arms on the automobile production line use hydraulic rotary joints to achieve flexible and changeable multi-axis movement, significantly improving production efficiency; in agricultural irrigation systems, center-supported sprinklers rely on hydraulic rotary joints to achieve 360-degree all-round rotation and spraying, evenly moistening every inch of farmland; drilling platforms in the oil and gas industry use hydraulic rotary joints to deliver high-pressure mud to the drill bit, helping the drilling operation to proceed smoothly.

IV. Product Types and Outstanding Advantages

1. Representative Products
Take the LHS  series hydraulic rotary joint as an example. This product is widely praised in the market for its excellent performance. It uses high-precision bearings and sealing structures inside, which can ensure stable fluid transmission even under high-speed rotation and high-pressure environments; the optimized channel design effectively reduces fluid pressure loss and greatly improves transmission efficiency. At the same time, the product has undergone special surface treatment, and its wear resistance and corrosion resistance are significantly enhanced, and its service life is extended.
2. Outstanding Advantages
The hydraulic rotary joint has outstanding advantages. On the one hand, it can effectively extend the service life of the equipment and reduce the costs caused by frequent maintenance and replacement of parts; on the other hand, it gives the equipment greater flexibility, enabling it to complete complex rotation movements. In addition, the excellent anti-leakage design avoids environmental pollution and resource waste caused by fluid leakage, and effectively guarantees the safety and sustainability of the production process.

5. How to correctly choose a hydraulic rotary joint

When choosing a hydraulic rotary joint, you need to consider multiple factors. First, you need to select a product that matches the working pressure and operating temperature range of the equipment. For example, in a high-temperature and high-pressure steam transmission system, you must choose a high-temperature and high-pressure resistant rotary joint. Secondly, the joint size must be precisely matched with the equipment interface to ensure the accuracy and stability of the installation. At the same time, it is also necessary to combine the actual application scenario, consider factors such as the material, sealing performance, and maintenance convenience of the joint, so as to select the most suitable product, maximize the equipment operation efficiency, and reduce maintenance costs.

VI. Analysis of Alternative Solutions

Under certain conditions, swivel joints, flexible hoses, elbow fittings, ball joints, etc. can be used as substitutes for hydraulic swivel joints. However, these substitutes have their own shortcomings. Although flexible hoses have a certain degree of flexibility, they are prone to fatigue damage under high pressure and high-speed rotation environments, and the fluid transmission stability is poor; elbow fittings cannot achieve 360-degree rotation and have a relatively narrow scope of application. Therefore, when choosing substitutes, it is important to fully evaluate the actual application needs and make prudent decisions.

VII. Common causes of failure and maintenance methods

1. Causes of failure
Failures of hydraulic rotary joints are usually caused by a variety of factors. Excessive pressure may damage the seals and cause leakage; extreme temperature conditions will affect material properties and shorten the service life of the joints; improper installation may cause wear or deformation of components; impurity contamination in the fluid will aggravate the wear of seals and bearings; lack of regular maintenance can also easily cause various failures.
2. Maintenance points
To ensure the normal operation of the hydraulic rotary joint, regular maintenance is required. Regularly check the sealing performance of the joint and replace worn seals in time; prevent fluid contamination, install filters in the system to filter impurities; lubricate the bearings appropriately to reduce friction; regularly clean the joint surface to avoid dust and oil accumulation; at the same time, check whether the equipment is installed correctly to ensure the alignment accuracy of each component. In addition, following the manufacturer's recommendations and replacing the joints regularly is also an important measure to ensure the stable operation of the equipment.

The characteristics of the rotary joints of ingiant company can mix electrical signals with gas and liquid circuits, with a compact structure, and are widely used in medical equipment, automatic welding machine systems, radars, antenna systems, and industrial automation control systems.
