In-depth Analysis of Induction Motor Components: From Basics to Cutting-Edge, Fully Master the Operation and Maintenance Code

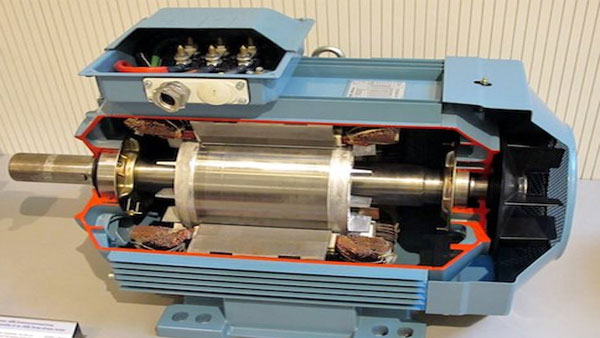

induction-motor-600

 ingiant technology   |  Industry new  | March 24.2025

In today's era of rapid industrial and technological development, induction motors are like a powerful power heart, continuously delivering surging power to various types of equipment. Whether it is the deafening and efficient large-scale mechanical equipment in the factory workshop, or the household appliances that work silently in the family environment and bring convenience to life, induction motors play an irreplaceable key role. In-depth exploration of its internal components is undoubtedly the core of achieving efficient operation, precise maintenance and continuous innovation.

1. Basics of induction motor components: Start the journey of exploration

Induction motors cleverly convert electrical energy into mechanical energy based on the principle of electromagnetic induction to drive various types of equipment. Its application fields are extremely wide, covering many aspects such as industrial manufacturing, transportation, commercial facilities and daily life. For equipment maintenance personnel and engineers, in-depth understanding of the components of induction motors is like holding a master key in hand, which can not only effectively prevent failures and reduce operation and maintenance costs, but also significantly improve the operating efficiency of the motor, thereby optimizing the entire production process. For example, the maintenance team of a large textile factory discovered and solved potential problems in advance by systematically learning the knowledge of induction motor components, greatly shortening equipment downtime and significantly improving production efficiency.

2. Main components and their functions: the symphony of core components

(I) Mechanical components

Stator: The stator is the energy cornerstone of the induction motor. It generates a strong magnetic field by powering on, laying the foundation for the operation of the motor. Its design and manufacturing process are directly related to the stability and strength of the magnetic field, and play a decisive role in the overall performance of the motor.
Rotor: The rotor is like the power source of the motor. It interacts with the stator magnetic field and rotates at high speed under the impetus of electromagnetic force, converting electrical energy into mechanical energy to provide power for the operation of the equipment.
Bearing: The bearing is responsible for reducing friction and ensuring the smooth rotation of the rotor. High-quality bearings can not only reduce energy consumption, but also effectively extend the service life of the motor.
Frame: The frame is a solid supporting structure for the motor, providing a stable support for the internal components to ensure that the motor will not be displaced or damaged due to vibration or external force during operation.End cover: The end cover is tightly fixed to both ends of the motor, like a loyal guard, effectively preventing dust, moisture and other external factors from eroding the internal components, while providing necessary support for the bearing. Cooling fan: When the motor runs at high speed, it will generate a lot of heat. The cooling fan will rotate tirelessly and quickly to dissipate the heat in time, ensuring that the motor runs within the appropriate temperature range and avoiding damage to components due to overheating.

Shaft: The shaft acts as a link for power transmission, responsible for transmitting the torque generated by the rotor to external equipment, driving the equipment to complete various work tasks.

(II) Electrical components

Winding: Winding is like the neural network of the motor. When powered on, it generates a magnetic field, interacts with the stator magnetic field, and drives the rotor to rotate. Its material and winding method have a crucial impact on the performance of the motor.
Insulation: Insulation materials are the guarantee of safe operation of the motor. They can effectively prevent faults such as current leakage and short circuit, and ensure that the motor works in a safe and stable state.
Capacitor: In single-phase induction motors, capacitors play a key role, which can significantly improve the starting performance and operating efficiency of the motor, so that the motor can start smoothly and run stably.

3. Importance of component materials: Quality is determined by materials

The quality of materials used in motor components is directly related to the operating efficiency and service life of the motor. For example, using high-quality electrical steel to make the core of the stator and rotor can effectively reduce hysteresis loss and eddy current loss, and improve the energy conversion efficiency of the motor; using high-purity copper materials for windings can reduce resistance and reduce losses during power transmission. In special application environments such as high temperature, high humidity or strong corrosion, the use of advanced ceramic materials and high-performance composite materials to manufacture motor components can significantly enhance the adaptability and reliability of the motor.

4. Troubleshooting and common problems: accurate diagnosis, the right medicine

(I) Stator failure
When the stator fails, the motor usually shows symptoms such as difficulty in starting, abnormal overheating, and abnormal noise. Through professional insulation resistance testing and other methods, it is possible to quickly and accurately check whether the stator has problems such as short circuit, open circuit or insulation damage. Once a fault is found, repair measures such as rewinding the winding or replacing the stator can be taken according to the specific situation.
(II) Rotor failure
Rotor failure is relatively hidden and difficult to detect. However, with the help of advanced current characteristic analysis technology, it is possible to effectively diagnose whether the rotor has broken bars, short circuits and other problems. For minor faults, welding can be used for repair; if the fault is more serious, the rotor needs to be replaced in time to ensure the normal operation of the motor.
(III) Bearing failure
Bearing failure is one of the common faults of motors, which is mostly caused by poor lubrication, misaligned installation or overload operation. In daily maintenance, the lubrication of the bearings should be checked regularly to ensure that they are fully lubricated; at the same time, attention should be paid to checking the installation accuracy of the bearings to avoid abnormal wear due to misalignment. Once a bearing fault is found, it should be replaced in time to avoid affecting the overall performance of the motor.
(IV) Cooling problem
Problems with the cooling system will cause the motor to overheat and affect the service life of the motor. In daily maintenance, dust and debris on the cooling fan and heat sink should be cleaned regularly to ensure that the heat dissipation channel is unobstructed; a temperature monitoring device can also be installed to monitor the operating temperature of the motor in real time. Once an abnormal temperature increase is found, the cooling system fault should be checked and repaired in time.

V. Future development trends: technology-led, innovation-driven

(I) Breakthroughs in materials science
With the continuous progress of materials science, the emergence of new materials such as nanocrystalline magnetic materials and high-temperature superconductors has brought new opportunities for improving the performance of induction motors. These materials have higher magnetic permeability, lower loss and stronger high-temperature resistance, and are expected to significantly improve the efficiency and power density of motors.
(II) Application of smart sensors and Internet of Things technology
The rapid development of smart sensors and Internet of Things technology has made the condition monitoring and predictive maintenance of motor components a reality. Various smart sensors are installed on motor components to collect the temperature, vibration, current and other operating data of the motor in real time, and the data is transmitted to the cloud for analysis and processing with the help of Internet of Things technology. Based on big data analysis and artificial intelligence algorithms, it is possible to predict possible failures of motor components in advance, take maintenance measures in time, and avoid losses caused by equipment downtime.
(III) High-efficiency energy-saving and miniaturized design
Faced with increasingly stringent environmental regulations and market demand for high-efficiency energy-saving products, the design of induction motors is moving towards high-efficiency energy-saving, compact and miniaturized. By optimizing the motor structure design and adopting advanced control algorithms and manufacturing processes, we can continuously reduce motor energy consumption and improve power density to meet the motor performance requirements of different application scenarios.

VI. Motor Maintenance Guide: Careful Care, Long-lasting Operation

(I) Formulate a Regular Maintenance Plan
Formulate a comprehensive regular maintenance plan and conduct a comprehensive inspection of each component of the motor regularly. This includes checking whether the torque of the shaft is normal, whether the winding has signs of damage, and the wear of the bearings. At the same time, closely monitor the operating temperature and noise of the motor to detect abnormal conditions in a timely manner.
(II) Reasonable Selection of Replacement Parts Rationally choose the time to replace the parts according to the actual use and life cycle of the motor parts. When replacing parts, give priority to original parts with reliable quality and stable performance or high-quality substitutes that have been strictly certified to ensure that the motor performance is not affected. (III) Scientifically Lubricate Bearings
Proper bearing lubrication is the key to ensuring the normal operation of the motor. According to the type of bearing, working environment and operating conditions, choose the appropriate lubricant and lubricate it according to the prescribed cycle and method. Avoid over-lubrication or under-lubrication to avoid affecting the service life of the bearing.
(IV) Keep the motor clean
Clean the motor regularly to remove dust, oil and other debris on the surface and inside of the motor. In particular, the cooling fan and heat sink should be kept clean and unobstructed to ensure good heat dissipation of the motor.

VII. Summary: Continuous exploration creates excellence

The various components of the induction motor work together to build an efficient and stable power system. Taking electric vehicles as an example, if the cooling system of its drive motor fails, it will directly affect the motor performance and vehicle range, and even endanger driving safety. Therefore, continuous learning and in-depth understanding of induction motor components and close attention to industry technology development trends are of great significance to improving motor operating efficiency, extending service life, and promoting the continuous innovation and development of induction motor technology. Let us work together to continue to move forward on the road of exploring induction motor components and contribute more wisdom and strength to the development of modern industry and technology.
