Radio frequency slip rings, a seemingly inconspicuous but crucial component, never expected that radio frequency slip rings have such a wide range of applications. From military defense systems to medical equipment, from industrial automation to communications satellites, this sophisticated electromechanical component plays an integral role in many high-end devices. How do RF slip rings play a role in these fields?
The basic function of an RF slip ring is to transmit high-frequency signals while allowing the connected device to rotate or move. This feature makes it crucial in situations where dynamic signal transmission is required. For example, in modern fighter aircraft, missiles and radar systems, RF slip rings allow antennas to rotate freely without interrupting signal transmission, which is critical for real-time monitoring and target location.

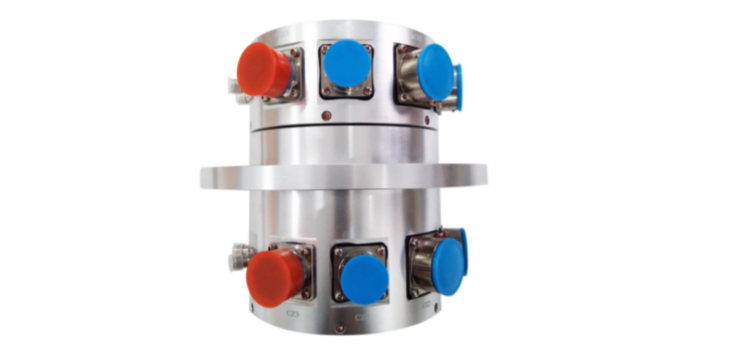

Ingiant 6-channel RF slip ring

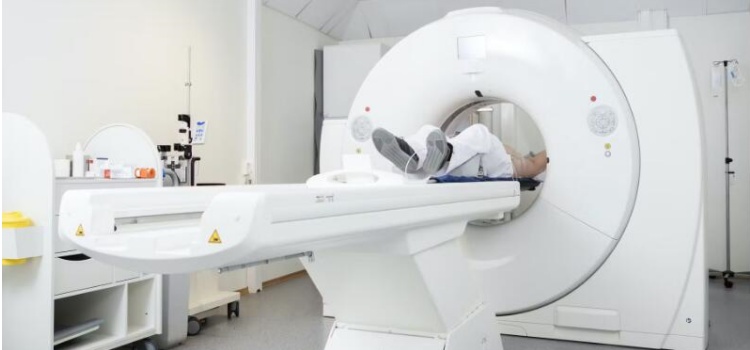

In the medical field, the application of radio frequency slip rings cannot be underestimated. With the development of interventional treatment technology, doctors often need to insert catheters and other equipment into the body for treatment or detection, and radiofrequency slip rings can ensure that these devices will not break signal transmission when they rotate. Especially in magnetic resonance imaging (MRI) equipment, RF slip rings ensure stable transmission of image signals during scanning, thereby improving diagnostic accuracy.

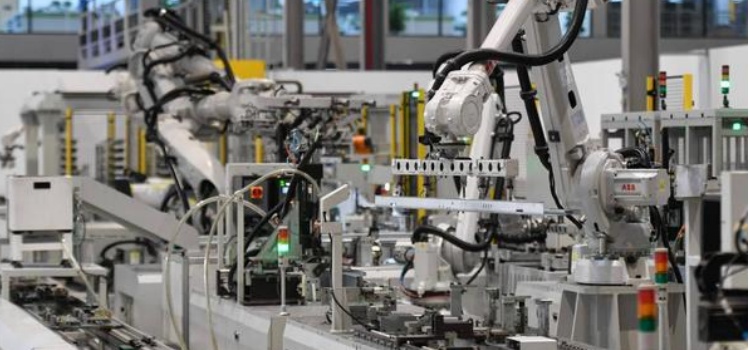

In the field of industrial automation, the role of RF slip rings cannot be underestimated. In automated production lines, robots and other automated equipment need to move frequently and transmit large amounts of data. The RF slip ring plays the role of “signal hub” here. It ensures that the signal can maintain a stable connection even during continuous movement, greatly improving production efficiency and reliability.
Communication satellites are another key application area for RF slip rings. In the space environment, because satellites need to constantly adjust their posture to maintain contact with the ground, the stability of signal transmission is extremely demanding. The RF slip ring acts as a bridge here, allowing signals to be transmitted without interference as the satellite rotates, thereby ensuring unimpeded global communications.
In addition to the above fields, RF slip rings are also widely used in many industries such as radio and television, drones, and ocean exploration. In the field of broadcasting and television, RF slip rings help cameras rotate 360 degrees without restriction while maintaining signal continuity. Drones use radio frequency slip rings to achieve all-round video surveillance and data transmission. Ocean detectors use radio frequency slip rings to work stably in the harsh environment of the deep sea and collect valuable data.
The reason why RF slip rings can play a role in such a wide range of fields is due to their high reliability, long life and excellent anti-interference ability. Its design usually includes multiple conductive rings and a rotating shaft to ensure stable signal transmission through precise contact methods. In order to adapt to the needs of different environments, RF slip rings can also be designed to be waterproof, dustproof or even explosion-proof.
As a precision electronic component, RF slip rings play a huge role in every corner of modern society. Whether in extreme environmental conditions or in high-speed rotating scenes, it can ensure stable signal transmission and demonstrate its indispensable unique value. With the continuous advancement of technology, the performance and application scope of radio frequency slip rings will surely be further expanded, contributing more to the development of human science and technology.
