In the wave of rapid development of modern industry and technology, various precision equipments have an increasingly urgent need for stable and efficient signal and power transmission. As a special and crucial transmission component, pancake slip ring plays an irreplaceable role in many fields with its unique performance. Next, let us explore the mystery of pancake slip ring in depth.
Analysis of the working principle of pancake slip ring

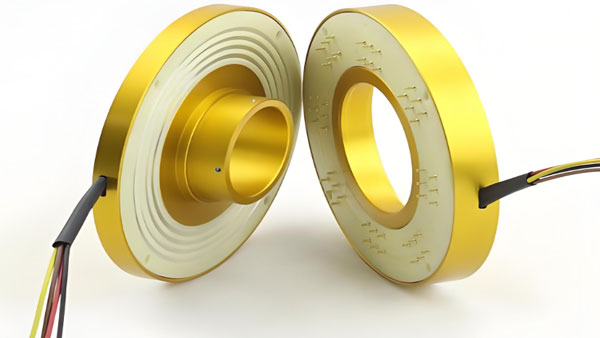

Pancake slip ring, from the appearance, is named because of its shape like a flat pancake. Its basic structure is similar to that of traditional slip rings, mainly composed of three parts: stator, rotor and contact. In actual operation, the stator always remains stationary, while the rotor rotates synchronously with the rotating parts of the equipment. When current or signal needs to be transmitted between the stationary part and the rotating part, the contact plays a core role. These contacts fit tightly between the rotor and the stator, ensuring that the current and signal can smoothly and smoothly cross the relatively moving parts, realize uninterrupted transmission, and provide solid guarantee for the stable operation of the equipment.
Significant advantages of pancake slip rings
Highly compact and ultra-thin design
One of the most prominent advantages of pancake slip rings is its extremely compact and ultra-thin structural design. Compared with other types of slip rings, it can be installed and operate efficiently in a very limited space. Take the HP series as an example. Its thinnest part is only 6mm. This feature gives it an incomparable advantage in equipment with extremely strict space requirements. Whether it is a small precision instrument or a rotating part with limited space in a large device, the pancake slip ring can be perfectly adapted to provide strong support for the miniaturization and lightweight design of the equipment.
Excellent signal and power transmission performance
The pancake slip ring uses high-quality fiber brushes and precious metal contacts, and performs well in signal and power transmission. It can accurately and stably transmit various signals, including weak electrical signals and high-speed data signals, to ensure that the signal is not distorted or attenuated during transmission. At the same time, in terms of power transmission, it can withstand higher currents to meet the power requirements of the equipment during operation. Moreover, through ingenious design, it can also organically combine power transmission and signal transmission to meet the diverse needs of complex equipment.
Powerful customization capability
Each application scenario has its own unique characteristics. The pancake slip ring takes this into full consideration and has powerful customization capability. From the setting of the running speed to the selection of the shell material; from the determination of the sealing level to the design of the wire end plug-in and the lead outlet method, it can be customized according to the specific needs of the customer. This highly customized service enables the pancake slip ring to accurately fit various special applications and give full play to its best performance.
Excellent durability
Thanks to the sophisticated manufacturing process and high-quality raw materials, the pancake slip ring has excellent durability. During long-term use, it can withstand the test of frequent rotational motion and various complex environments, effectively reducing the maintenance frequency of the equipment and reducing the operating cost. Its stable and reliable performance provides a strong guarantee for the long-term stable operation of the equipment.
Wide application fields of pancake slip rings
Industrial automation field
In industrial automation production lines, pancake slip rings play a key role. For example, in cable reel equipment, it is responsible for transmitting power and control signals from the fixed part to the rotating reel, ensuring that the cable can be smoothly retracted and released, and providing guarantee for the continuity of the production process. In the rotating workbench, it can realize the signal and power transmission between the workbench and the peripheral equipment, so that the workbench can be accurately rotated and positioned according to the preset program, greatly improving production efficiency and processing accuracy.
Medical equipment field
In medical imaging equipment, such as CT machines and MRI equipment, pancake slip rings are also indispensable. During the rotation process of these devices, the accuracy of signal transmission is extremely high to ensure the clarity and accuracy of the image. Pancake slip rings can meet this stringent requirement, ensuring that the equipment can stably transmit the collected signals to the processing unit while rotating at high speed, providing doctors with reliable diagnosis basis.
Security monitoring field
In the pan-tilt system of closed-circuit cameras, pancake slip rings are used to realize signal and power transmission between cameras and fixed brackets. It enables the camera to flexibly rotate horizontally and vertically, capture images from different angles in real time, and provide all-round and no-dead-angle protection for security monitoring.
Aerospace and Defense Field
In radar systems, pancake slip rings need to ensure stable signal and power transmission in harsh environments. Its rugged design and excellent anti-interference ability can meet the working requirements of radars in high-speed rotation and complex electromagnetic environments, ensuring that radars can accurately detect targets and provide key support for national defense security.
How to choose a suitable pancake slip ring
Determine key parameters based on the application scenario
First, it is necessary to clarify what kind of equipment the slip ring will be used for, as well as the operating environment and working requirements of the equipment. For example, if it is used for high-speed rotating equipment, it is necessary to focus on the speed limit of the slip ring; if it is used in a humid or corrosive gas environment, it is necessary to consider the sealing level of the slip ring and the corrosion resistance of the shell material. At the same time, according to the type of signal and power required to be transmitted by the equipment, determine the parameters such as the signal transmission accuracy and current carrying capacity of the slip ring.
Focus on product quality and brand reputation
It is crucial to choose a pancake slip ring manufacturer with a good reputation and high brand reputation. High-quality products usually use advanced manufacturing processes and high-quality raw materials to ensure stable and durable performance of the slip ring. You can evaluate the product quality and reputation of the manufacturer by looking at its customer reviews, industry certifications, and past successful cases.
Consider customized service capabilities
As mentioned above, the customization requirements of pancake slip rings are high. Therefore, when choosing, make sure that the manufacturer has strong customized service capabilities and can provide a one-stop solution from design to production according to specific needs to meet the needs of unique application scenarios.
Evaluate the quality of after-sales service
Perfect after-sales service can provide timely and effective solutions when problems are encountered during use. Choosing a manufacturer that can provide quick response, professional maintenance and long-term technical support will help ensure the stable operation of the equipment and reduce losses caused by equipment failure.
The pancake slip ring designed by Ingiant has shown great application value in many fields with its unique and excellent performance. With the continuous advancement of science and technology and the continuous growth of industrial demand, it provides more efficient and reliable digital signal and power transmission solutions for more automation equipment and industries. Whether in the current hot application areas or in the emerging areas that may be developed in the future, pancake slip rings are expected to continue to play an important role and become an important force in promoting scientific and technological progress and industrial development.
