Rotary Connections: A Deep Dive into Rotating Electrical Connectors

ingiant technology   |  Industry new  | April 15.2025

In the dynamic landscape of modern engineering and industrial operations, rotating electrical connectors stand as the unsung heroes enabling seamless transfer of power and signals between stationary and rotating components. They are the linchpins that ensure the smooth operation of a vast array of machinery, from high speed industrial equipment to sophisticated medical devices and aerospace systems.

The Basics of Rotating Electrical Connectors

What Exactly Are They?

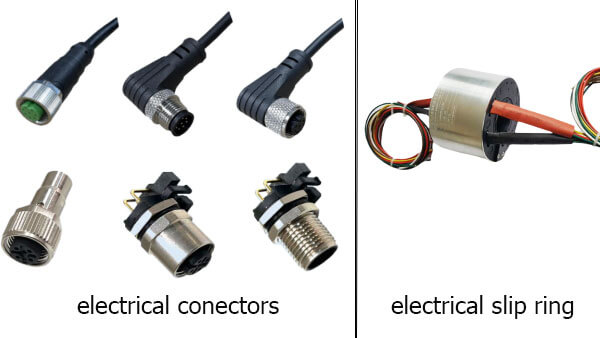

Rotating electrical connectors, often colloquially referred to as slip rings, are electromechanical devices designed with a specific purpose in mind - to establish a continuous electrical connection between parts of a system where one part rotates relative to the other. This is achieved through a combination of stationary and rotating elements that work in harmony. The stationary part, typically mounted on a fixed structure, contains electrical contacts or brushes. These brushes are in constant contact with the rotating part, which is usually a conductive ring or a series of rings. As the rotating component turns, the brushes maintain electrical contact, allowing for the uninterrupted flow of power and signals.

Components That Make Them Tick

1. Rings: The rings in a rotating electrical connector are crucial. They are usually made of highly conductive materials such as copper, brass, or in high - performance applications, precious metals like gold or silver. Copper, with its excellent electrical conductivity and relatively low cost, is a popular choice for many standard applications. The rings are precision - machined to ensure a smooth surface finish. This smoothness is essential as it reduces friction and electrical resistance during the rotation process. In multi - channel slip rings, multiple rings are stacked concentrically, each dedicated to a specific electrical circuit.
2. Brushes: Brushes are the components that slide along the surface of the rotating rings. They are typically crafted from carbon - based materials, graphite - metal composites, or in some cases, precious metal alloys. Carbon brushes are widely used due to their self - lubricating properties. This self - lubrication helps to minimize wear and tear on both the brushes and the rings, ensuring a longer lifespan for the connector. Graphite - metal composites offer a good balance between electrical conductivity and mechanical strength. Precious metal alloy brushes are reserved for applications where extremely low electrical resistance and high reliability are of utmost importance, such as in aerospace and high - end medical equipment.
3. Insulation: Insulation is a vital component in rotating electrical connectors. It serves to separate the different electrical circuits within the connector, preventing short - circuits and ensuring the proper functioning of each channel. Common insulation materials include high - temperature plastics like polyetheretherketone (PEEK), epoxy resins, and ceramic materials. PEEK is highly regarded for its outstanding mechanical and chemical resistance, as well as its ability to withstand high temperatures. Epoxy resins are widely used for their excellent insulating properties and ease of application. Ceramic insulation, on the other hand, is often employed in high - voltage and high - temperature applications due to its superior electrical and thermal characteristics.

Types of Rotating Electrical Connectors

Through  Bore Slip Rings

Through  bore slip rings are characterized by a central hole or bore through which a shaft or other components can pass. This unique design makes them an ideal choice for applications where space is at a premium. For instance, in a large - scale automotive manufacturing plant, robotic arms equipped with through - bore slip rings are used for painting operations. The central bore allows the robot's arm to rotate freely while powering the paint - spraying nozzles and transmitting real - time control signals. This ensures a consistent and high - quality paint finish on the vehicle bodies. They are also commonly used in industrial machinery such as rotary tables, where the central bore can accommodate the shaft of the table, ensuring seamless operation. Through - bore slip rings can handle a wide range of electrical currents and signal types, making them highly versatile.

Pancake Slip Rings

Pancake slip rings are known for their flat, disc - like shape. This low - profile design makes them particularly suitable for applications where a compact and lightweight solution is required. In a surveillance drone used for wildlife monitoring, pancake slip rings are integrated into the camera gimbal system. The gimbal needs to rotate smoothly to capture different angles of the wildlife, and the pancake slip rings enable the transfer of power and video signals. Their compact size does not add significant weight to the drone, ensuring efficient flight performance. Pancake slip rings can be designed to handle both power and signal transmission, and they are well - equipped to operate at relatively high rotational speeds.

High  Speed Slip Rings

As the name implies, high - speed slip rings are specifically designed to operate at extremely high rotational speeds. These slip rings require specialized materials and designs to cope with the high centrifugal forces and frictional heat generated during high - speed rotation. Advanced bearing systems are often incorporated to reduce vibration and ensure smooth rotation. In a high - speed grinding machine used in the precision manufacturing of optical lenses, high - speed slip rings transfer power to the grinding spindle, which rotates at tens of thousands of revolutions per minute. The precise transfer of electrical power and control signals via these slip rings is crucial for maintaining the accuracy of the grinding process, resulting in high - quality optical lenses. They are also used in some aerospace applications, where components need to rotate at high speeds while maintaining reliable electrical connections.

Fiber Optic Slip Rings

Fiber optic slip rings are a specialized type of rotating electrical connector that are used to transmit optical signals between a stationary and a rotating part. Instead of relying on traditional electrical conductors, they use optical fibers to transfer data at high speeds with extremely low signal loss. In a satellite - based communication relay station, fiber optic slip rings are used in the antenna - pointing mechanism. As the antenna rotates to track different satellites, the fiber optic slip rings enable the high - bandwidth transfer of communication signals. This ensures seamless communication between the ground stations and the satellites, facilitating services like global internet connectivity and real - time weather monitoring. They offer several advantages over traditional electrical slip rings, including immunity to electromagnetic interference, high data transfer rates, and the ability to transmit signals over long distances without significant degradation.

Applications Across Industries

Industrial Machinery

1. Manufacturing Equipment: In manufacturing plants, rotating electrical connectors play a crucial role in the operation of various equipment. For example, in an automated smartphone assembly line, slip rings are used to transfer power and control signals to robotic arms. These robotic arms need to rotate freely while performing tasks such as picking and placing tiny electronic components onto the circuit boards. The use of slip rings ensures that the arms receive a continuous and stable supply of power and signals, enabling them to operate with precision and efficiency.
2. Conveyor Systems: Conveyor systems in industrial settings often have rotating components such as pulleys and rollers. Rotating electrical connectors are used to transfer power to these components, allowing them to rotate and move materials along the conveyor belt. In a large - scale food packaging factory, conveyor belts equipped with slip rings transport food products through different stages of the packaging process. The reliable operation of these connectors is essential for maintaining a smooth workflow and ensuring the timely packaging of food items.
3. Industrial Mixers and Blenders: Mixers and blenders in industries such as food and chemical manufacturing have rotating shafts. Slip rings are used to provide power to the motors that drive these shafts, enabling the mixing and blending operations to take place. In a chemical plant producing high - performance adhesives, industrial mixers with slip rings ensure the uniform blending of various chemical components. The ability of slip rings to handle high - torque applications makes them well - suited for these types of equipment.
4. CT Scanners: In CT (Computed Tomography) scanners, rotating electrical connectors are used to transfer power and data between the stationary and rotating parts of the scanner. The X - ray source and detector in a CT scanner need to rotate around the patient to capture multiple images from different angles. Slip rings ensure that a continuous electrical connection is maintained during this rotation, allowing for the seamless operation of the scanner and the accurate acquisition of medical images. In a leading - edge hospital's radiology department, a state - of - the - art CT scanner with advanced slip ring technology provides highly detailed images, assisting doctors in diagnosing complex medical conditions.
5. MRI Machines: MRI (Magnetic Resonance Imaging) machines also rely on rotating electrical connectors. These machines use powerful magnetic fields and radio waves to generate detailed images of the body. The rotating parts of the MRI machine, such as the gradient coils, require a stable supply of power and signals. Slip rings are used to provide this connection, ensuring the precise operation of the machine and the production of high - quality images for medical diagnosis. A top - tier research hospital uses MRI machines with specialized slip rings to conduct in - depth studies on the human brain, advancing our understanding of neurological disorders.
6. Surgical Robots: Surgical robots are becoming increasingly prevalent in modern medicine. These robots have multiple rotating joints that require power and control signals to perform delicate surgical procedures. Rotating electrical connectors, in the form of slip rings, are used to enable the transfer of these electrical signals, allowing the surgical robot to move with precision and accuracy. In a renowned surgical center, surgeons use a robotic system with high - performance slip rings to perform minimally invasive cardiac surgeries, reducing patient recovery times and improving surgical outcomes.
7. Aircraft Engines: In aircraft engines, rotating electrical connectors are used to transfer power and signals to various rotating components. These components include sensors that monitor engine performance, such as temperature, pressure, and vibration sensors. Slip rings ensure that these sensors receive a continuous power supply and can transmit data to the engine control unit, even as the engine rotates at high speeds. In a commercial airliner's jet engine, slip rings play a vital role in maintaining the engine's optimal performance by facilitating real - time data transfer from the sensors to the control system, ensuring safe and efficient flights.
8. Missile Guidance Systems: Missile guidance systems rely on rotating electrical connectors to transfer power and control signals between the stationary and rotating parts of the missile. This is crucial for the accurate navigation of the missile. The ability of slip rings to operate in harsh environments, such as high - altitude and high - temperature conditions, makes them suitable for use in missile systems. In a military's advanced missile defense system, slip rings enable the precise control of the missile's flight path, enhancing the system's effectiveness in intercepting incoming threats.
9. Satellite Communication Systems: Satellites in orbit use rotating electrical connectors, specifically fiber optic slip rings, to enable the rotation of communication antennas while maintaining a stable connection with ground stations. This allows for the continuous transmission and reception of data, voice, and video signals, which are essential for various applications such as weather forecasting, global positioning, and telecommunications. A global satellite network uses fiber optic slip rings in its satellites' antenna systems, ensuring seamless communication across the globe, enabling services like real - time disaster response and international business communication.
10. Electrical Requirements: The first step in choosing a rotating electrical connector is to assess the electrical requirements of your application. This includes determining the amount of power that needs to be transferred, the type of signals (analog, digital, or high - frequency), and the data transfer rate. For applications that require high - power transmission, such as in industrial machinery, high - current slip rings with appropriate voltage ratings should be selected. In applications where high - speed data transfer is crucial, such as in fiber optic - based communication systems, fiber optic slip rings or high - performance electrical slip rings with sufficient bandwidth should be considered.
11. Mechanical Requirements: Mechanical factors also play a significant role in the selection process. The rotational speed of the equipment is an important consideration. If the application involves high - speed rotation, high - speed slip rings designed to handle the specific rotational speed range should be chosen. The size and shape of the connector should also be compatible with the available space in the equipment. For example, in applications with limited space, through - bore or pancake slip rings may be more suitable.
12. Environmental Conditions: The operating environment of the equipment is another critical factor. If the equipment will be used in harsh environments, such as in industrial settings with high levels of dust, moisture, or extreme temperatures, slip rings with appropriate sealing and materials that can withstand these conditions should be selected. In marine applications, for instance, slip rings made of corrosion - resistant materials and with watertight seals are essential.

Medical Equipment

Aerospace and Defense

Choosing the Right Rotating Electrical Connector

Consider Your Application Requirements

Reputation and Quality of the Manufacturer

When choosing a rotating electrical connector, it is important to consider the reputation and quality of the manufacturer. A well - established manufacturer with a proven track record of producing high - quality products is more likely to offer reliable and durable slip rings. Look for manufacturers that adhere to international quality standards and have a comprehensive quality control process in place. Reading customer reviews and testimonials can also provide valuable insights into the performance and reliability of the manufacturer's products.

Cost - Effectiveness

While cost should not be the sole determining factor, it is an important consideration. Compare the prices of different rotating electrical connectors from various manufacturers, but also take into account the quality and performance of the products. Sometimes, investing in a higher - quality slip ring may be more cost - effective in the long run, as it may offer better reliability, longer lifespan, and lower maintenance costs. Consider the total cost of ownership, including the initial purchase price, installation costs, and potential maintenance and replacement costs over the lifespan of the product.

In conclusion, rotating electrical connectors are an essential component in a wide range of industries, enabling the seamless operation of machinery and equipment. By understanding the different types of connectors, their applications, and the factors to consider when choosing one, engineers and designers can make informed decisions to ensure the optimal performance of their systems. As technology continues to advance, rotating electrical connectors will undoubtedly play an even more significant role in driving innovation and efficiency across various sectors.
