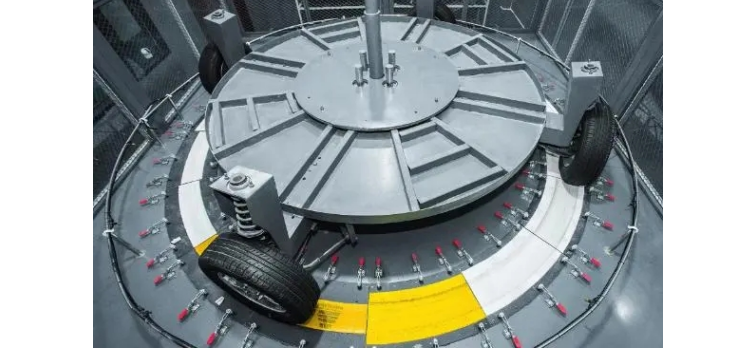

The rotary test bench is a piece of equipment widely used in industrial production to test and inspect the performance and reliability of rotating parts. During the operation of the rotating test bench, the slip ring is an important component. It plays the role of connecting rotating parts and fixed parts, and can transmit signals and power. So what kind of slip ring is used on the rotating test bench? Let’s take a look at the characteristics of test bench slip rings.
According to the different usage scenarios and requirements of the rotary test bench, the types of slip rings also vary. Common rotary test bench slip rings can be divided into three categories: electric slip rings, signal slip rings and hybrid slip rings.
- Power slip ring: Power slip ring is mainly used to transmit power signals on the rotating test bench, such as motor drive signals. It can stably transmit high current and high pressure, and has high transmission efficiency and reliability.
- Signal slip ring: Signal slip ring is mainly used to transmit signals on the rotating test bench, such as sensor signals, measurement signals, etc. It can transmit various types of signals stably and has high signal transmission accuracy and stability.
- Hybrid slip ring: A hybrid slip ring is a combination of a power slip ring and a signal slip ring. It can transmit both power signals and various types of signals. It has high transmission efficiency and signal transmission accuracy, and is widely used in rotating test benches.
Features of rotary test bench slip rings
- High speed: The slip ring of the rotating test bench needs to be able to adapt to the requirements of high-speed rotation, so it has a high speed range and speed stability.
- Low friction: The slip ring needs to have a low friction coefficient in the rotating test bench to reduce energy loss and wear.
- High transmission efficiency: Slip rings need to have high transmission efficiency when transmitting power and signals to ensure signal transmission accuracy and power transmission stability.
- High temperature resistance: The rotating test bench will generate high temperatures during operation, and the slip ring needs to have high high temperature resistance to ensure its normal operation.
- Long life: Slip rings need to have a long service life to reduce replacement and maintenance costs.
The types of slip rings used in rotary test benches include electric slip rings, signal slip rings and hybrid slip rings. These slip rings feature high rotational speed, low friction, high transmission efficiency, high temperature resistance and long life.
Slip ring manufacturer Jiujiang Ingiant Technology reminds that choosing the appropriate slip ring is crucial to the performance and reliability of the rotary test bench.
