In the complex operating mechanism of the motor, the key concept of "slip" is like a behind-the-scenes controller, which plays a decisive role in the performance of the motor. Whether it is a large motor on an industrial production line or a small appliance in daily life, a deep understanding of motor slip can help us better use the motor, improve its operating efficiency and reduce energy consumption. Next, let us explore the mystery of motor slip from all aspects.
Ⅰ. The nature of motor slip
Motor slip refers specifically to the difference between the speed of the rotating magnetic field generated by the stator in an induction motor and the actual rotation speed of the rotor. In principle, when AC is passed through the stator winding, a high-speed rotating magnetic field will be quickly generated, and the rotor will gradually accelerate under the action of this magnetic field. However, due to various factors, it is difficult for the speed of the rotor to be completely consistent with the speed of the rotating magnetic field. The speed difference between the two is the slip.
Under ideal conditions, a balanced slip value is like the precise calibration of a precision instrument for the performance of the motor. The slip cannot be too high, otherwise the motor will consume too much energy, generate severe heat, and significantly reduce efficiency; the slip cannot be too low either, otherwise the motor may not be able to generate enough torque and it will be difficult to drive the load to operate normally.
Ⅱ. Changes in slip under different working conditions
(I) Close connection between load and slip
The motor load is the core factor affecting the change in slip. When the load on the motor is light, the rotor can accelerate more easily under the drive of the rotating magnetic field, and the slip is relatively small at this time. For example, in the office, the motor that drives a small fan has a low slip because the fan blades are subject to little resistance and the motor load is light.
Once the motor load increases, it is like asking a person to carry a heavier bag and move forward. The rotor needs to overcome greater resistance to rotate. In order to generate enough torque to drive the load, the rotor speed will be relatively reduced, which will lead to an increase in slip. Take the large crane in the factory as an example. When it lifts heavy goods, the motor load increases instantly and the slip will increase significantly.
(II) Definition of normal slip range
Different types and specifications of motors have their corresponding normal slip ranges. Generally speaking, the slip range of ordinary induction motors is roughly between 1% and 5%. But this is not an absolute standard. For some special-purpose motors, the normal slip range may be different. For example, the normal slip range of motors used in high starting torque applications may be slightly higher.
If the slip exceeds the normal range, the motor will be like a sick person and will experience various abnormal conditions. If the slip is too high, the motor will not only overheat and shorten its service life, but may also cause electrical failures; if the slip is too low, the motor may not be able to run stably, and problems such as speed fluctuations and insufficient torque may occur, which cannot meet actual work needs.
Ⅲ. Theoretical calculation of slip
(I) Formula for slip calculation
Slip is usually expressed as a percentage, and its calculation formula is: slip rate (%) = [(rotating magnetic field speed - rotor speed) / rotating magnetic field speed] × 100%. In this formula, the rotating magnetic field speed (synchronous speed) can be calculated by the power supply frequency and the number of motor poles, and the formula is: synchronous speed (rpm) = (120 × power supply frequency) / number of motor poles.
(II) Practical value of calculating slip rate
Accurate calculation of slip rate is of immeasurable value for the diagnosis of motor performance and the planning of subsequent control mechanisms. By calculating the slip rate, we can intuitively understand the current operating status of the motor and determine whether it is in the normal operating range. For example, in the daily maintenance of the motor, the slip rate is calculated regularly. If an abnormal change in the slip rate is found, potential problems that may exist in the motor can be detected in advance, such as bearing wear, winding short circuit, etc., so that maintenance measures can be taken in time to avoid more serious failures.
IV. Importance of slip control
(I) Effect of slip on motor efficiency
Slip is closely related to the operating efficiency of the motor. When the slip is within a reasonable range, the motor can efficiently convert electrical energy into mechanical energy and achieve effective energy utilization. However, once the slip is too high, excessive rotor copper loss and iron loss will be generated inside the motor. These additional energy losses are like "invisible thieves" that steal the electrical energy that should be converted into effective mechanical energy, resulting in a significant decrease in motor efficiency. For example, in some old industrial motors, due to long-term use, the slip gradually increases, and the motor efficiency may decrease by 10% - 20%, resulting in a large amount of energy waste.
(II) Effect of slip on motor life
Excessive slip will cause the motor to generate too much heat, and heat is the "enemy" of the motor. Continuous high temperature environment will accelerate the aging of the insulation material inside the motor, reduce its insulation performance, and increase the risk of short circuit. At the same time, high temperature may also cause poor lubrication of the motor bearings and aggravate the wear of mechanical parts. In the long run, the service life of the motor will be greatly shortened. According to statistics, if the slip is too high for a long time, the service life of the motor may be shortened by half or even more.
(III) The relationship between slip and power factor
Power factor is an important indicator to measure the efficiency of motor power consumption. Appropriate slip helps maintain a high power factor, allowing the motor to obtain power from the power grid more efficiently. However, when the slip deviates from the normal range, especially when the slip is too high, the reactive power of the motor will increase and the power factor will decrease. This will not only increase the energy consumption of the motor itself, but also have an adverse effect on the power grid and increase the burden on the power grid. For example, in some large factories, if the power factor of a large number of motors is too low, it may cause grid voltage fluctuations and affect the normal operation of other equipment.
(IV) Key elements of balanced slip control
In practical applications, to achieve good slip control, it is necessary to find a delicate balance between the efficiency, torque generation and power factor of the motor. This is like walking on a tightrope, which requires precise grasp of various factors. For example, in some production processes with high torque requirements, it may be necessary to increase the slip appropriately to obtain sufficient torque, but at the same time, pay close attention to the efficiency and power factor of the motor, and minimize the adverse effects caused by the increase in slip through reasonable control measures.
V. Slip control and reduction technology
(I) Mechanical control method
1. Reasonable management of motor load: Controlling slip from the source and rationally planning the motor load are the key. In practical applications, it is necessary to avoid the motor being in an overloaded state for a long time. For example, in industrial production, the production process can be optimized and the start and stop sequence of the equipment can be reasonably arranged to ensure that the load borne by the motor is within its rated range. At the same time, for some loads with large fluctuations, buffer devices or adjustment systems can be used to make the motor load more stable, thereby reducing the fluctuation of slip.
1. Optimize the mechanical transmission system: The performance of the mechanical transmission system will also affect the motor slip. By selecting efficient transmission devices, such as high-precision gear boxes, high-quality belts, etc., the energy loss and mechanical resistance in the transmission process can be reduced, so that the motor can drive the load more smoothly, thereby reducing the slip. In addition, regular maintenance and maintenance of the mechanical transmission system to ensure good lubrication and precise installation of each component can also help improve transmission efficiency and reduce slip.
(II) Electrical control method
1. Adjusting electrical parameters: Changing the electrical parameters of the motor is one of the effective means to control the slip. For example, by adjusting the power supply voltage of the motor, the torque and speed of the motor can be affected to a certain extent, thereby adjusting the slip. However, it should be noted that the voltage adjustment should be within a reasonable range. Too high or too low voltage may cause damage to the motor. In addition, the slip can also be controlled by changing the frequency of the motor. In some motor systems equipped with variable frequency speed regulation devices, by accurately adjusting the power supply frequency, the motor speed can be accurately controlled, thereby effectively controlling the slip.
1. Using variable frequency drives (VFD): Variable frequency drives (VFD) play an increasingly important role in modern motor control. It can flexibly adjust the frequency and voltage of the power supply according to the actual operating requirements of the motor to achieve precise control of the motor speed and slip. For example, in application scenarios such as fans and water pumps, VFD can automatically adjust the motor speed according to the actual air volume or water volume requirements, so that the motor can maintain the best slip state under different working conditions, thereby significantly improving the energy efficiency of the system.
VI. Relationship between motor design and slip
(I) Effect of pole number on slip
The number of poles of a motor is an important parameter in motor design, and it is closely related to slip. Generally speaking, the more poles a motor has, the lower its synchronous speed is, and under the same load conditions, the slip is relatively small. This is because after the number of poles increases, the distribution of the rotating magnetic field becomes denser, the force on the rotor in the magnetic field becomes more uniform, and it can operate more stably. For example, in some low-speed and high-torque applications, such as mining winches and large mixers, motors with more poles are usually selected to obtain smaller slip and higher torque output.
(II) Effect of rotor design on slip

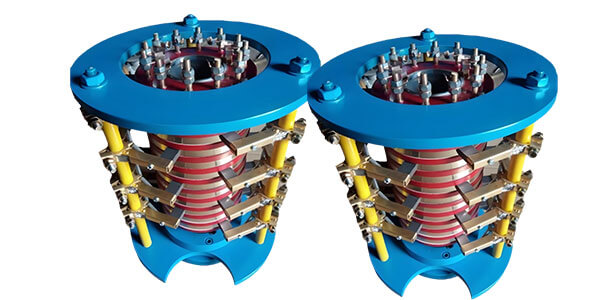

The design structure of the rotor also has a significant effect on the slip of the motor. Different rotor designs will cause changes in parameters such as rotor resistance and inductance, which in turn affect the performance of the motor. For example, for motors with wound rotors, by connecting external resistors in the rotor circuit, the rotor current can be flexibly adjusted to achieve slip control. During the starting process, appropriately increasing the rotor resistance can increase the starting torque of the motor, reduce the starting current, and also control the slip to a certain extent. For squirrel cage rotor motors, the slip performance of the motor can also be improved by optimizing the material and shape of the rotor bars.
(III) The relationship between rotor resistance and slip
The rotor resistance is one of the key factors affecting the slip. When the rotor resistance increases, the rotor current will decrease, and the torque of the motor will also decrease accordingly. In order to maintain a certain torque output, the rotor speed will decrease, resulting in an increase in slip. Conversely, when the rotor resistance decreases, the slip will decrease. In practical applications, the slip can be adjusted by changing the size of the rotor resistance according to different working requirements. For example, in some occasions where frequent starting and speed regulation are required, appropriately increasing the rotor resistance can improve the starting performance and speed regulation range of the motor.
(IV) The relationship between stator winding and slip
As a key component for the motor to generate a rotating magnetic field, the design and parameters of the stator winding will also affect the slip. Reasonable design of the number of turns, wire diameter and winding form of the stator winding can optimize the distribution of the rotating magnetic field and improve the performance of the motor. For example, a motor with distributed windings can make the rotating magnetic field more uniform, reduce harmonic components, thereby reducing slip and improving the operating stability and efficiency of the motor.
(V) Optimizing design to reduce slip and improve efficiency
By comprehensively optimizing the design of elements such as the number of motor poles, rotor design, rotor resistance and stator winding, the slip can be effectively reduced and the efficiency of the motor can be improved. During the motor design process, engineers will use advanced design software and calculation methods to accurately calculate and optimize various parameters according to the specific application scenarios and performance requirements of the motor to achieve the optimization of motor performance. For example, in the design of some high-efficiency and energy-saving motors, by adopting new materials and optimized structural design, the motor can maintain a low slip during operation, thereby significantly improving energy utilization efficiency and reducing energy consumption.
VII. Slip management in practical applications
(I) Slip management in manufacturing
In the manufacturing industry, motors are widely used in various production equipment, such as machine tools, conveyor belts, compressors, etc. Different production processes have different requirements for motor slip. For example, in precision machining machine tools, in order to ensure machining accuracy, the motor needs to maintain a stable speed and the slip should be controlled within a very small range. At this time, high-precision servo motors can be used in combination with advanced control systems to accurately adjust the motor slip to ensure stable operation of the machine tool. In some equipment that does not require high speed but requires high torque, such as large stamping machines, the motor needs to provide sufficient torque during startup and operation, which requires reasonable adjustment of the slip to meet production needs.
(II) Slip management in HVAC systems
In heating, ventilation and air conditioning (HVAC) systems, motors are mainly used to drive fans, water pumps and other equipment. The operating conditions of the HVAC system will continue to change with the changes in the indoor and outdoor environment, so the management of motor slip also needs to be flexible. For example, in an air-conditioning system, when the indoor temperature is low, the load of the fan and water pump is relatively small. At this time, the motor slip can be adjusted to reduce the motor speed to save energy. In the hot summer period, the indoor cooling demand increases, and the fan and water pump need to increase the power to operate. At this time, the slip needs to be adjusted appropriately to ensure that the motor can provide sufficient power. Through an intelligent control system, the motor slip can be dynamically adjusted according to the real-time operation data of the HVAC system, which can significantly improve the system's energy efficiency and reduce operating costs.
(III) Slip management in pump systems
Pump systems are widely used in industrial production and daily life, such as water supply systems, sewage treatment systems, etc. In pump systems, motor slip management is crucial to ensure the efficient operation of the pump. Since the flow and head requirements of the pump will change with the changes in working conditions, the motor slip needs to be adjusted according to the actual situation. For example, in a water supply system, when the water consumption is small, the pump load is light, and energy-saving operation can be achieved by reducing the motor slip and reducing the motor speed. During the peak water usage period, in order to meet the water supply demand, it is necessary to appropriately increase the motor slip and increase the motor torque output to ensure that the pump can work normally. By adopting advanced variable frequency speed regulation technology, combined with the pump performance curve, the motor slip can be accurately controlled, so that the pump system can maintain the best operating state under different working conditions.
(IV) Customization of slip management in different industries
Due to differences in their production processes and equipment requirements, different industries have different requirements for motor slip management. In addition to the above-mentioned manufacturing, HVAC systems and pump systems, in transportation, agricultural irrigation, medical equipment and other industries, it is necessary to customize appropriate slip management technology according to their own characteristics. For example, in electric vehicles, the slip control of the motor directly affects the acceleration performance, cruising range and energy efficiency of the vehicle. It is necessary to accurately adjust the motor slip through advanced battery management systems and motor control systems to meet the needs of the vehicle under different driving conditions. In agricultural irrigation, due to the different irrigation areas and water source conditions, the motor slip needs to be adjusted according to the actual situation to ensure that the water pump can supply water stably and achieve energy saving and consumption reduction at the same time.
Motor slip is a key parameter in motor operation and runs through all aspects of motor design, operation and maintenance. A deep understanding of the principle, change law and control method of motor slip is of great significance for optimizing motor performance, improving energy efficiency and reducing operating costs. Whether it is motor manufacturers, equipment operation and maintenance personnel, or technical personnel in related industries, they should attach great importance to the management of motor slip, and constantly explore and apply advanced technical means to enable motors to play a greater role in various fields.
