In the vast system of industrial machinery, slip ring induction motors have become the power source for many heavy equipment with their unique design and excellent performance, providing stable and reliable support for various complex production activities. Next, let us delve into the structure, working principle, performance characteristics, application fields and future development trends of slip ring induction motors.
Ⅰ. Introduction
Slip ring induction motors play a key role in the industrial field, and their performance directly affects the efficiency and stability of many production links. It is very important for industrial practitioners to understand the relevant knowledge of slip-ring induction motors.
Ⅱ. Basics of Slip-Ring Induction Motor
(I) Definition and Principle
Slip-ring induction motor is a three-phase induction motor that converts electrical energy into mechanical energy based on the principle of electromagnetic induction. Its working process is to generate a rotating magnetic field by passing alternating current through the stator winding, which induces current in the rotor winding, thereby generating electromagnetic torque to drive the rotor to rotate.

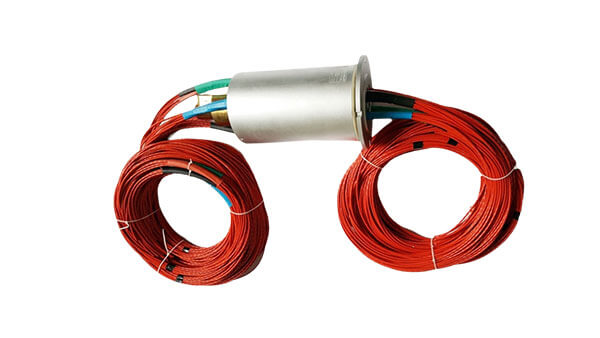

(II) Why use slip rings
Slip rings play a core bridge role in induction motors. On the one hand, it is responsible for transmitting electrical energy from stationary parts to rotating parts to ensure stable current flow; on the other hand, by connecting external resistors, the motor speed can be accurately adjusted to meet the diverse needs of different industrial scenarios.
Ⅲ. Structure and components of slip ring induction motor
(I) Stator
The stator is the stationary outer structure of the motor, with windings wound inside. When three-phase alternating current passes through these windings, a rotating magnetic field is generated, providing initial power for the motor to operate.
(II) Rotor
The rotor is the rotating part of the motor, equipped with a wound rotor (slip-ring rotor). The slip-ring assembly consists of three independent conductive rings, which are connected to the rotor through terminals and are responsible for transmitting current. The brushes and slip rings work closely together to ensure stable current transmission.
Ⅳ. Working principle of slip ring induction motor
(I) Detailed working process
When three-phase AC is connected to the stator winding, the stator generates a rotating magnetic field. According to the principle of electromagnetic induction, this magnetic field induces current in the rotor winding. The slip ring and brush transmit the current from the stator to the rotor winding, generating electromagnetic torque, driving the rotor to rotate, and realizing the conversion of electrical energy into mechanical energy.
(II) The key role of "slip"
"Slip" refers to the difference between the rotating magnetic field speed and the actual rotor speed, which is a key factor in the operation of the motor. The existence of slip causes the rotor winding to induce current, ensuring the continuous operation of the motor. By changing the external resistance connected to the rotor circuit, the slip can be flexibly adjusted to achieve precise control of the motor speed and torque.
Ⅴ. Speed control of slip ring induction motor
(I) Speed control principle
Slip-ring induction motor speed control mainly relies on adjusting the slip. Changing the external resistance of the rotor can effectively control the slip, thereby achieving precise adjustment of the motor speed to meet the speed requirements of different industrial applications.
(II) Factors affecting speed control
1. External resistance: Increasing the external resistance increases the slip and reduces the motor speed; reducing the external resistance reduces the slip and increases the motor speed.
2. Voltage and frequency: Although changing the voltage and frequency of the stator winding can affect the motor speed, it may cause torque instability and power factor reduction, and is rarely used alone in practical applications. In variable frequency drive systems, precise control of the voltage and frequency ratio can achieve better speed regulation effects.
3. Pole number change: Changing the number of motor poles can change the synchronous speed. In specially designed dual-speed or multi-speed slip-ring induction motors, pole number switching is achieved through a specific stator winding configuration to adjust the motor speed. This method has high stability and efficiency, but relatively few speed control options.
4. Load torque: The motor speed changes with the load torque. When the load torque increases, the motor speed decreases; when the load torque decreases, the motor speed increases. In practical applications, the motor capacity and configuration should be reasonably selected according to the load characteristics to ensure stable operation.
VI. Advantages and applications of slip ring induction motors in industry
(I) Advantages of industrial applications
1. High starting torque: When starting, it can generate higher starting torque with lower starting current, which is suitable for heavy-load starting equipment such as mining machinery and heavy cranes.
2. Flexible speed control: By adjusting the external resistor, the motor speed can be easily adjusted flexibly to meet the needs of different production processes.
3. High power factor: Adding resistance to the rotor circuit can improve the motor power factor, reduce reactive power loss, and improve energy utilization efficiency. It is suitable for large industrial equipment with high energy efficiency requirements.
4. Strong and durable structure: The sturdy structure design has strong resistance to electrical and mechanical stress, and can operate stably for a long time in harsh industrial environments.
5. Adapt to load changes: The speed-torque characteristics can be automatically adjusted according to load requirements, and can maintain good operating performance under light and heavy load conditions.
(II) Industry application cases
1. Metal and mining industry: In a large copper mine, the crusher needs to break huge ore into small pieces. The slip ring induction motor can easily start the crusher with its high starting torque. During operation, the motor speed is changed by adjusting the external resistor according to the hardness of the ore and the feed amount to ensure the crushing efficiency and quality. When grinding the ore into fine powder, the grinding machine also relies on the speed control function of the slip ring induction motor to adjust the speed according to the characteristics of different ores to improve the grinding effect.
2. Processing and manufacturing industry: In a cement production enterprise, the ball mill is used to grind cement raw materials. The slip ring induction motor provides stable power for the ball mill. By adjusting the motor speed, it adapts to the grinding requirements of different raw materials and improves the cement production efficiency. In the process of calcining cement clinker in the rotary kiln, the slip ring induction motor ensures the stable rotation of the kiln body, adjusts the speed according to the production process, and ensures the quality of the clinker.
3. Hoisting and elevator industry: On the construction site, large tower cranes are responsible for lifting construction materials. The high starting torque of the slip-ring induction motor enables the tower crane to start smoothly when fully loaded. During the lifting process, the precise speed control can achieve smooth lifting and accurate positioning of materials, improving construction safety and efficiency. In the elevator system of high-rise office buildings, the slip-ring induction motor ensures the smooth operation of the elevator, flexibly adjusts the speed according to the floor docking requirements, and provides passengers with a comfortable riding experience.
4. Ship industry: The propulsion system of an ocean-going cargo ship uses a slip-ring induction motor. When the ship sets sail and accelerates, the high starting torque of the motor enables the ship to quickly reach the predetermined speed; during the voyage, the ship can be flexibly controlled by adjusting the motor speed according to the sea conditions and navigation requirements. In addition, the anchor windlass and deck machinery on the ship also use slip-ring induction motors to ensure reliable operation of the equipment.
5. Power generation industry: In a thermal power plant, the feed pump is responsible for pressurizing water into the boiler. The slip-ring induction motor provides stable power for the feed pump. When the power generation load changes, the feed water volume is adjusted by adjusting the motor speed to ensure the normal operation of the boiler. When delivering the air required for combustion and exhausting flue gas, the fan also relies on the speed control function of the slip ring induction motor to adjust the air volume according to the combustion conditions and improve the power generation efficiency.
VII. Advantages and Disadvantages of Slip Ring Induction Motors
(I) Advantages
1. High starting torque, suitable for heavy-load starting scenarios.
2. Flexible speed control to meet different working conditions.
3. Low starting current, reducing the impact on the power grid.
4. High power factor and high energy efficiency.
5. Strong structure, adaptable to harsh industrial environments.
(II) Disadvantages
1. Slip rings and brushes require regular maintenance, increasing usage costs and downtime.
2. Additional resistance will cause a certain amount of power loss, affecting the overall efficiency of the motor.
3. Compared with squirrel cage induction motors, the structure is complex and the cost is higher.
Ⅷ. Differences between slip ring induction motors and other motor types
(I) Comparison with squirrel cage induction motors
| Comparison Items | Squirrel Cage Induction Motor | Slip Ring Induction Motor |
| Structure | The rotor is composed of parallel bars and end rings, and the structure is simple | The rotor is connected to the external circuit through slip rings and brushes, and the structure is complex. |
| Speed control | The speed is basically fixed and difficult to adjust. | The speed can be flexibly adjusted by changing the external resistor. |
| Starting torque | Limited starting torque | High starting torque |
| Maintenance | Basically maintenance-free | Slip rings and brushes require regular maintenance. |
| Starting current | Starting current large | Starting current small |
| Cost | Lower initial and maintenance costs | Higher costs |
(II) Comparison with other motor types
1. Comparison with brushless DC motors: Brushless DC motors have high efficiency, long life, and high control accuracy, and are suitable for electronic equipment and precision machinery. Slip ring induction motors have obvious advantages in high starting torque and heavy load applications, and are suitable for heavy industrial equipment.
2. Comparison with synchronous motors: The speed of synchronous motors is strictly synchronized with the power supply frequency, and is suitable for occasions with extremely high speed stability requirements, such as clock devices and precision instruments. The speed of slip ring induction motors fluctuates slightly with load changes, but the speed control performance is good and the starting torque is high, which is more suitable for industrial applications with frequent speed regulation and heavy load starting.
3. Comparison with DC motors: DC motors have excellent speed regulation performance and large starting torque, and are often used in occasions with extremely high speed regulation requirements, such as electric vehicles and high-precision machine tools. Although the speed regulation performance of slip ring induction motors is not as good as that of DC motors, they have a simple structure and high reliability, and are more widely used in the industrial field.
4. Comparison with servo motors: servo motors have high-precision position control and speed control capabilities, and are mainly used in fields with extremely high precision requirements such as automated production lines and robots. Slip ring induction motors focus more on providing high starting torque and adapting to heavy load conditions, and play an important role in heavy industrial equipment.
IX. Maintenance and troubleshooting guide for slip ring induction motors
(I) Preventive maintenance
1. Regular visual inspection: Check the appearance of the motor regularly to see if there are signs of overheating, dust accumulation, abnormal noise or mechanical damage.
2. Clean the motor: Regularly clean the dust and dirt on the surface and inside of the motor to prevent dust from clogging the vents and causing the motor to overheat.
3. Check the slip rings and brushes: Regularly check the wear of the slip rings and brushes to ensure that the brushes slide freely in the brush holder and have good contact with the slip rings. If the brushes are severely worn, replace them in time.
4. Lubricate the bearings: Regularly add an appropriate amount of lubricant to the motor bearings as recommended by the manufacturer to reduce friction and wear, prevent bearing overheating, and extend the service life of the motor.
(II) Troubleshooting
1. The motor cannot start: Check whether the power supply and line connection are normal. After eliminating the power problem, check whether the running capacitor is damaged and whether the motor winding has a short circuit or open circuit fault.
2. The motor is overheated: Check whether the motor load is overloaded, whether the ventilation system is working properly, and whether maintenance is performed on time.
3. The motor vibrates too much: Check whether the motor is firmly installed and whether the rotor is balanced. If the installation is loose or the rotor is unbalanced, tighten and adjust it in time.
4. The motor is too noisy: Common causes include bearing wear, rotor imbalance, loose parts or insufficient lubrication. Take corresponding measures for different reasons, such as replacing bearings, adjusting rotor balance, tightening parts or adding lubricants.
Ⅹ. Future trends and technological progress of slip ring induction motors
(I) Integration of intelligence and the Internet of Things
Slip-ring induction motors will be deeply integrated with the Internet of Things technology, and the operating status, such as temperature, vibration, current and other parameters, will be monitored in real time through built-in sensors and transmitted to the remote monitoring system. Predictive maintenance can be achieved, downtime can be reduced, operating performance can be optimized, and production efficiency can be improved.
(II) Application of new materials
Advances in materials science will bring more advanced component materials to slip-ring induction motors. New wear-resistant materials are used to manufacture slip rings and brushes to increase service life; high-performance insulation materials are used to improve electrical performance and reliability.
(III) Energy efficiency improvement
Global attention to energy efficiency and sustainable development has prompted the continuous optimization of the design of slip-ring induction motors. In the future, motors may adopt more efficient cooling systems and optimized winding designs to reduce energy loss and reduce operating costs.
(IV) Design software upgrade
Advanced design software helps engineers optimize motor design more accurately. By simulating the operating performance of motors under different working conditions, the best balance between torque, speed and efficiency can be found, and more efficient motors can be customized for specific applications.
(V) Application of regenerative drive technology
In the future, slip-ring induction motors are expected to adopt regenerative drive technology, which converts kinetic energy into electrical energy and feeds it back to the power grid during motor deceleration, further improving energy utilization efficiency.
Ⅺ. Conclusion
Slip ring induction motors play an important role in modern industry due to their unique advantages. Despite some challenges, with the continuous advancement of technology, they will achieve significant improvements in intelligence, energy efficiency and reliability. In the future, slip ring induction motors will continue to provide strong power support for industrial development.
Ⅻ. FAQ
Q1. What are the main application areas of slip ring induction motors?
A1. Mainly used in industries that require high starting torque and speed control, such as metal mining, processing and manufacturing, lifting and transportation, ships, power generation, etc. Specific applications include driving crushers, ball mills, cranes, ship propellers, pumps and compressors in power generation equipment, etc.
Q2. What is the role of external resistance in slip ring induction motors?
A2. At startup, increasing the external resistance can increase the starting torque, reduce the starting current, and enable the motor to start smoothly. During operation, changing the external resistance can adjust the motor speed and torque.
Q3. How to extend the service life of slip ring induction motors?
A3. Perform preventive maintenance regularly, including cleaning the motor, checking the slip rings and brushes, lubricating the bearings, and replacing worn parts in time. Reasonable use of the motor, avoiding overload operation and frequent start and stop, can also help extend the life of the motor.
Q4. What are the speed control methods of the slip ring induction motor?
A4. The speed is mainly controlled by changing the external resistance of the rotor. In addition, the speed can be controlled by adjusting the voltage and frequency (less used alone), changing the number of motor poles, etc.
Q5. What is the difference between a slip ring induction motor and a squirrel-cage induction motor?
A5. The slip-ring induction motor has a complex structure, flexible speed regulation, high starting torque, and low starting current, but requires regular maintenance and has a high cost; the squirrel-cage induction motor has a simple structure, basically no maintenance, and low cost, but it is difficult to adjust the speed, has a limited starting torque, and a large starting current.
