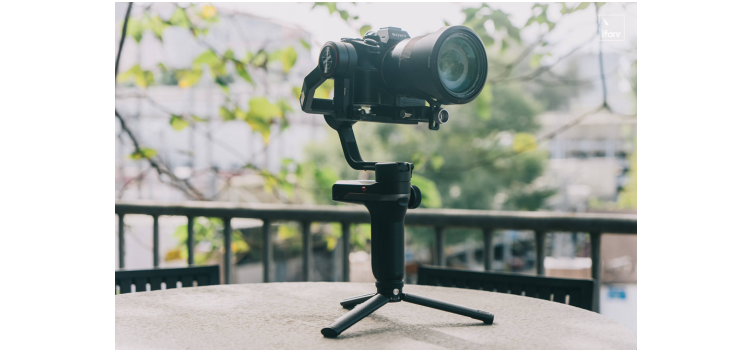

Slip ring is a common electrical connection device that allows electrical signals or power to pass through rotatingly connected parts while maintaining continuous rotation. In SLR camera stabilizers, slip rings are widely used to transmit power and signals to maintain camera stability and achieve various functions. Below, slip ring manufacturer Jiujiang Ingiant Technology talks about the types of slip rings commonly used in SLR camera stabilizers and their functions.
SLR stabilizer slip ring types: In SLR camera stabilizers, common slip ring types include electric slip rings, signal slip rings and hybrid slip rings.
1. Electric slip ring
Power slip rings are mainly used to transmit electrical energy. It usually consists of multiple contacts that enable high-power current to be passed between rotating parts. This is crucial for a DSLR camera stabilizer, as it requires power to drive motors and other critical components.
2. Signal slip ring
Signal slip rings are mainly used to transmit low-voltage signals, such as sensor signals, control signals, etc. It usually consists of multiple contacts, each of which is used to transmit an independent signal path. Through the signal slip ring, the camera can implement various functions, such as autofocus, image stabilization, shutter control, etc.
3. Hybrid slip ring
Hybrid slip rings are a combination of power slip rings and signal slip rings that can transmit electrical energy and signals at the same time. This kind of slip ring has a wider application range and can meet the needs of various functions of the camera.
In SLR camera stabilizers, slip rings play a key role and have the following important functions:
1. Power supply
The slip ring provides a stable power supply to the camera’s motor and other electronic components by transmitting electrical energy. Stable power supply is the basis for the normal operation of the camera, and the use of slip rings ensures the continuity of power supply.
2. Signal transmission
Slip rings can transmit various signals, including sensor signals, control signals, etc. Through the slip ring, the camera can receive and send signals to achieve functions such as autofocus, image stabilization, and shutter control.
3. Maintain stability
Stabilizers are an important component in SLR cameras, as they counteract the effects of hand shake and camera movement on image quality. The application of slip rings in stabilizers can provide stable power and signal transmission, thereby maintaining camera stability and improving image quality.
