Slip rings and commutators are both devices used for electrical connections, but they have different design purposes, structures, and application areas. Here are the main differences between the two:

Design Purposes:

Slip Ring :is a device that allows current or signals to be transferred from a stationary part to a rotating part or vice versa through a rotating interface. It enables continuous 360-degree rotation without interrupting power or data transmission.

Commutator:is mainly used in DC motors to change the direction of the current flowing through the windings inside the motor so that the motor can produce a constant direction of torque output. In simple terms, it maintains the unidirectional rotation of the motor by periodically reversing the current.

Design Structures:

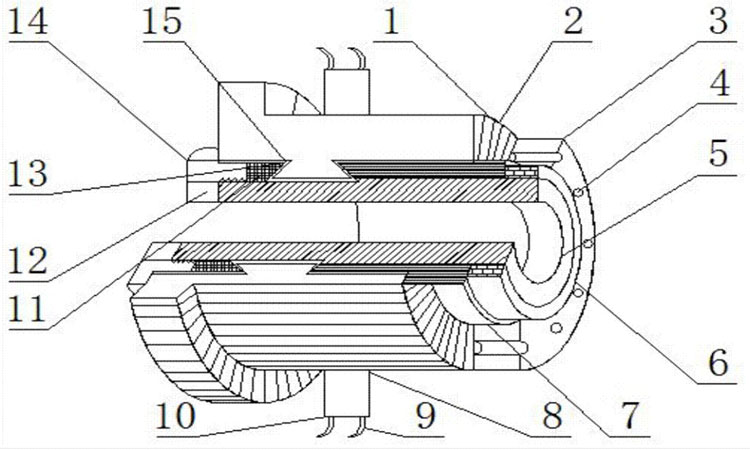

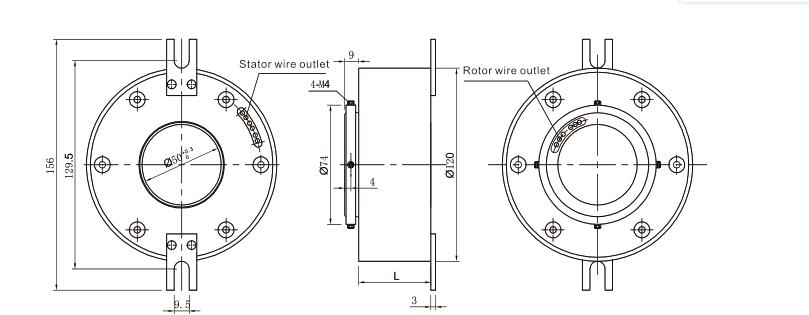

Slip Ring :Usually consists of a fixed part (the stator) and a part that can rotate relative to the stator (the rotor). The rotor is equipped with conductive rings, while the stator is equipped with brushes or contact points that maintain contact with the conductive rings to ensure a good electrical connection.

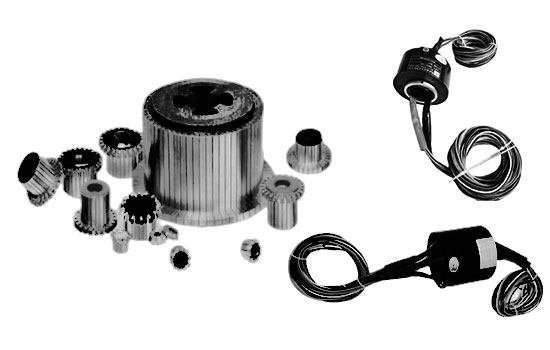

Commutator:It is a cylindrical assembly consisting of multiple insulating segments, each of which is connected to a coil of the motor. When the motor is running, the commutator rotates with the rotor and is connected to the external circuit through carbon brushes to change the direction of the current.



Application：

Slip Ring :It is widely used in situations where continuous rotation is required but electrical connection must be maintained, such as wind turbines, industrial robots, security monitoring systems, etc.

Commutator:it is mainly used in various types of DC motors and some special AC motor designs, such as household appliances, power tools, car starter motors, etc.
