In the complex landscape of induction motors, the decision between a wound rotor and a squirrel cage rotor holds critical importance. As industries from various sectors grow more dependent on motors for an extensive array of operations, grasping the nuances of these two fundamental rotor types and their influence on motor performance isn't merely advantageous—it's an absolute necessity.
Unraveling the Wound Rotor
Definition and Design Intricacies

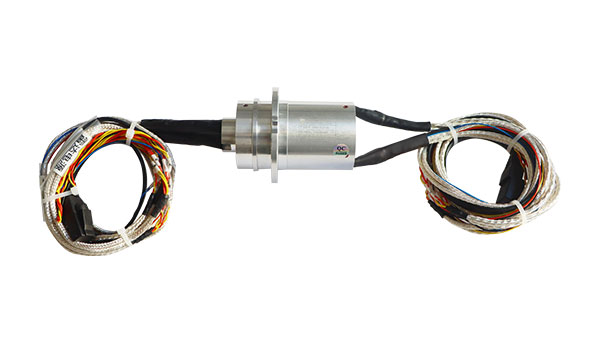

The wound rotor, often called the slip - ring rotor, represents a remarkable feat of engineering design. Comprising a rotor core around which insulated wires are wound, typically in a three - phase configuration, its distinct feature lies in its connection to the external circuit. This connection is established through a set of slip rings and brushes. The slip rings, metallic rings fastened to the rotor shaft, maintain continuous electrical contact with the stationary brushes. This setup enables the integration of external resistors into the rotor circuit, a feature that significantly impacts the motor's operation.
Functional Advantages and Applications
One of the wound rotor's most notable strengths is its capacity to deliver high starting torque. When an induction motor begins operation, the initial load can be quite substantial. In such scenarios, the wound rotor proves its worth. By augmenting the resistance in the rotor circuit using external resistors, the starting current is curbed while the torque is maximized. This makes wound - rotor motors ideal for applications demanding the initiation of heavy loads from a standstill, such as in large - scale industrial cranes. These cranes need to lift extremely heavy loads, and the wound - rotor motor's high starting torque ensures smooth and efficient functioning.
Another remarkable aspect of the wound rotor is its precise speed control capabilities. By tweaking the resistance in the rotor circuit, the motor's speed can be adjusted across a broad spectrum. This renders it suitable for applications where speed must be fine - tuned according to the specific requirements of the task at hand. For example, in the paper - making industry, the motors driving the paper - rolling machines require precise speed control to guarantee consistent paper quality. Wound - rotor motors can readily meet these demands.
Drawbacks to Consider
However, the wound rotor has its downsides. The presence of slip rings and brushes means there's mechanical wear and tear over time. The brushes, in constant contact with the slip rings, need to be periodically replaced. This not only adds to the maintenance expenses but also necessitates regular inspections to ensure optimal performance. Additionally, the wound rotor's complex design makes it costlier to manufacture compared to some other rotor types.
Delving into the Squirrel Cage Rotor
Design Simplicity at Its Best
Conversely, the squirrel cage rotor exemplifies simplicity. Its name stems from its physical resemblance to a squirrel cage. Comprising a series of short - circuited conductive bars, usually crafted from copper or aluminum and embedded in a laminated iron core, these bars are short - circuited at both ends by end rings. The absence of external electrical connections like brushes or slip rings makes the squirrel cage rotor a sturdy and reliable design.
Functionality and Diverse Applications
The squirrel cage rotor functions based on the principle of electromagnetic induction. When the stator of the induction motor is energized, a rotating magnetic field is generated. This magnetic field induces currents in the conductive bars of the squirrel cage rotor. These induced currents, in turn, generate their own magnetic fields, which interact with the stator's magnetic field, resulting in the rotor's rotation.
Owing to its straightforward and dependable design, the squirrel cage rotor is widely utilized in applications requiring a constant speed. In household appliances such as washing machines and fans, squirrel cage motors are the norm. They offer a consistent and reliable power source, ensuring the seamless operation of these appliances. In industrial settings, they're also commonly used in pumps and compressors that need to run continuously at a fixed speed.
Limitations of the Squirrel Cage Rotor
Despite its numerous advantages, the squirrel cage rotor has limitations. One of the primary drawbacks is its relatively low starting torque compared to the wound rotor. When starting from a standstill, the squirrel cage rotor may struggle to overcome heavy loads. Additionally, its speed control capabilities are somewhat restricted. While it can operate efficiently at a fixed speed, making significant speed adjustments is more challenging compared to a wound - rotor motor.
A Side - by - Side Comparison
Design Disparities
The design differences between the wound rotor and the squirrel cage rotor are striking. The wound rotor, with its slip rings, brushes, and external resistor connections, is a more intricate design. This complexity allows for greater flexibility in terms of speed control and torque adjustment. In contrast, the squirrel cage rotor's simplicity is its forte. Its lack of external electrical components reduces the risk of mechanical failure and makes it a more dependable option in many applications.
Functional Variations
Functionally, the two rotors diverge significantly. The wound rotor offers variable speed operation and high starting torque, making it suitable for applications with variable load requirements. The squirrel cage rotor, on the other hand, is designed for constant - speed operation and is better suited for applications where the load remains relatively stable.
Energy Efficiency Considerations
In terms of energy efficiency, the squirrel cage rotor has an edge in applications where the motor operates at a constant speed for extended periods. Since there are no additional components like brushes and slip rings to cause energy losses, it can operate more efficiently. However, in applications with variable loads, the wound rotor can be adjusted to optimize energy consumption, making it more efficient in such scenarios.
Maintenance Requirements
Maintenance is another area where the two rotors differ. The wound rotor, with its brushes and slip rings, demands regular maintenance. The brushes need to be inspected for wear and replaced when necessary. The slip rings also need to be kept clean and in good condition. In contrast, the squirrel cage rotor, with its simple design, requires minimal maintenance. This makes it a more cost - effective option in terms of long - term maintenance costs.
Cost Considerations
Initial Investment
When it comes to the initial cost, the squirrel cage rotor is generally more budget - friendly. Its simple design and fewer components result in lower manufacturing costs. In contrast, the wound rotor, with its more complex design and additional components, is costlier to purchase.
Long - Term Operational Costs
However, the long - term operational costs present a different picture. The squirrel cage rotor, while cheaper to buy, may consume more energy in applications with variable loads. The wound rotor, on the other hand, may be more energy - efficient in such applications, but its higher maintenance costs must be factored in. In applications where the motor runs continuously at a constant speed, the squirrel cage rotor's lower energy consumption and minimal maintenance requirements make it more cost - effective in the long run.
Making the Right Choice
Key Decision - Making Factors
When choosing between a wound rotor and a squirrel cage rotor, several factors must be taken into account. The nature of the application is of utmost importance. If the application demands high starting torque and precise speed control, such as in a mining conveyor system, a wound - rotor motor is likely the better choice. Conversely, if the application requires a constant - speed operation with minimal maintenance, like in a residential air - conditioning unit, a squirrel - cage motor would be more appropriate.
Energy efficiency is another crucial factor. If energy costs are a major concern, the type of load and the motor's operating conditions must be carefully evaluated. In applications with variable loads, the wound rotor may offer better energy - saving potential, while in constant - speed applications, the squirrel cage rotor is more energy - efficient.
Maintenance costs also play a significant role. If the application is in a location where maintenance is difficult or expensive, the simple design of the squirrel cage rotor may be more appealing. However, if the application requires frequent speed adjustments and high starting torque, the higher maintenance costs of the wound rotor may be acceptable.
Expert Recommendations
Industry experts often advocate for a thorough analysis of the application requirements before making a decision. They suggest considering not only the initial cost but also the long - term operational costs, including energy consumption and maintenance. In many cases, a combination of both types of motors may be employed in a facility, with each type chosen for its specific strengths in different applications.
In conclusion, both the wound rotor and the squirrel cage rotor possess their own unique characteristics, advantages, and limitations. The choice between the two hinges on a careful consideration of the specific requirements of the application, budget constraints, and maintenance capabilities. By understanding these factors, engineers and industry professionals can make an informed decision that will yield optimal motor performance and cost - effectiveness.
