Through hole conductive slip ring DHK100-36

DHK100-36 series through hole conductive slip ring, inner hole 100mm, suitable for rotating electromechanical systems with diameter less than 100mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings, used for 360 degrees Transmit power or signals in rotating systems. This series of large via electric slip rings often need to be combined with other signals, such as Ethernet, etc., and are used in slip rings for large stage theater equipment, composite mechanical equipment, etc.


Product Detail

Product Tags

DHK100-36

The main parameters

Number of circuits

36

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

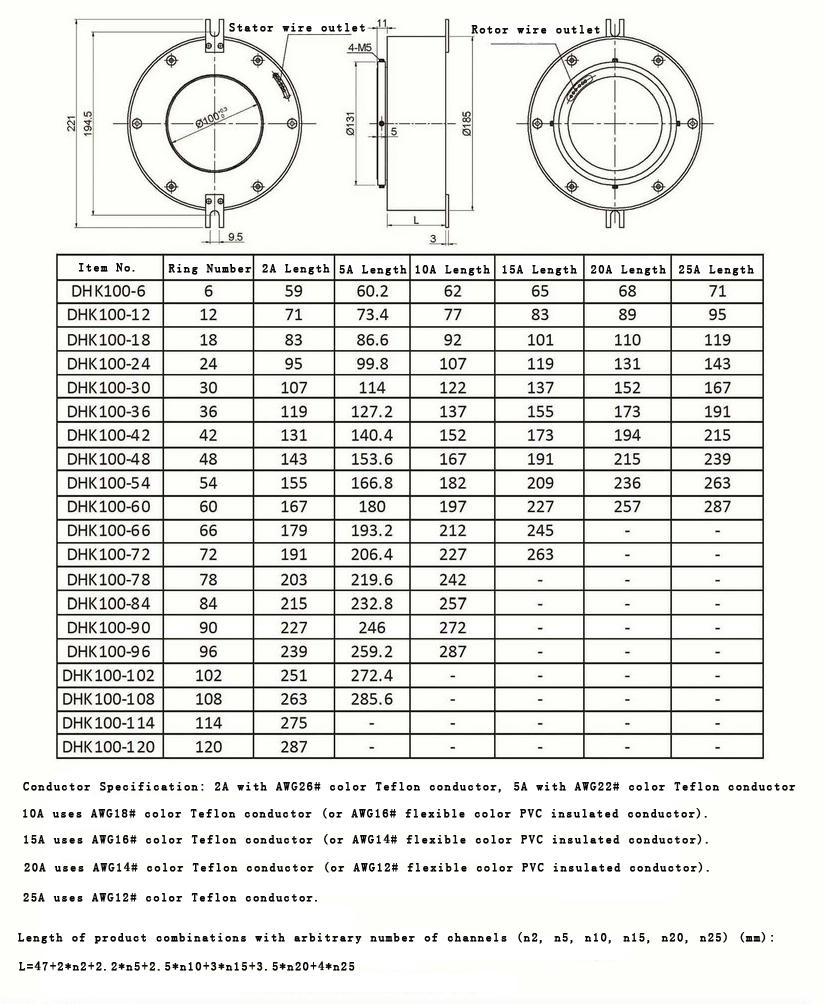

Standard product outline drawing:

DHK100

Through hole conductive slip ring DHK100-36

DHK100-36 series through hole conductive slip ring, inner hole 100mm, suitable for rotating electromechanical systems with diameter less than 100mm, standard power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings, used for 360 degrees Transmit power or signals in rotating systems. This series of large via electric slip rings often need to be combined with other signals, such as Ethernet, etc., and are used in slip rings for large stage theater equipment, composite mechanical equipment, etc.



Features

  • Multi-contact brush contact design, long service life
  • Integrated structural design, easy to install
  • Power ring 20A/ring, maximum 48 rings, signal ring 5A/ring, maximum 96 rings
  • IP 54 protection level, IP68 can be customized
  • Can integrate multiple signals and be compatible with multiple data protocols
  • Maintenance-free use



Typical applications

  • Automatic machine
  • Cable reel
  • Robot/Rotation Sensor
  • Display/display equipment
  • Packaging Machinery
  • Industrial turntable
  • Medical/pharmaceutical equipment
  • Marking machine
  • Filling machinery
  • CNC machine tools
