Non-standard customized hybrid slip ring combination 3-way optical fiber and 1-way pneumatic

Short Description:

The gas and light combined slip ring uses pneumatic and light transmission methods respectively to transmit gas and light signals to the rotating part.

Gas and optical fiber transmission channels are respectively installed inside the gas and light combined slip ring to realize the transmission of different media. Since gas and optical fiber transmission have their own characteristics, gas and optical combined slip rings can achieve a wider range of application scenarios.

Send email to us

Product Detail

Product Tags

DHS078-46-3F-1Q
The main parameters
Number of circuits	46	Working temperature	“-40℃~+65℃”
Rated current	can be customized	Working humidity	＜70%
Rated voltage	0~240 VAC/VDC	Protection level	IP54
Insulation resistance	≥1000MΩ @500VDC	Housing material	Aluminum Alloy
Insulation strength	1500 VAC@50Hz,60s,2mA	Electrical contact material	Precious metal
Dynamic resistance variation	＜10MΩ	Lead wire specification	Colored Teflon insulated & tinned stranded flexible wire
Rotating speed	0~600rpm	Lead wire length	500mm + 20mm

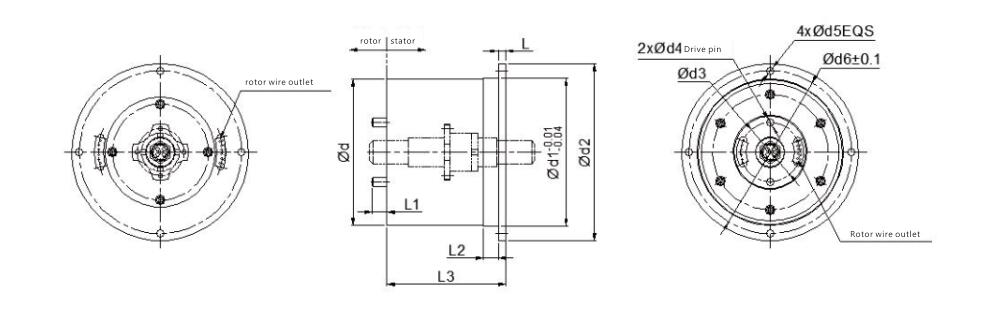

Product drawing:

Hybrid slip rings for simultaneous transmission of gas、optical fiber and electrics (power, signals)

The gas and light combined slip ring uses pneumatic and light transmission methods respectively to transmit gas and light signals to the rotating part.

Modern industrial equipment needs to transmit gas quickly and stably during processing, assembly, testing, etc., which requires the use of pneumatic slip rings. In fields such as medical equipment and high-definition photography, high-speed and high-precision optical signals need to be transmitted, and optical slip rings are needed.

Our advantage:

Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers,our factary covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirment.
Customized service, accurate response and technical support for customers, 12 months of the products warranty, no worry for after sales problems. With reliable products, strict qualitycontrol system, perfect pre-sale and after-sales service, Ingiant obtain strusts from more and more customers all over the world.
