1. what is pan-tilt head ?

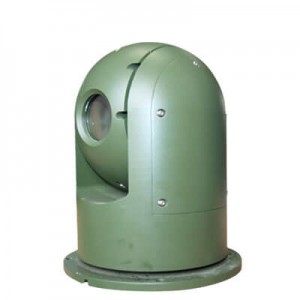

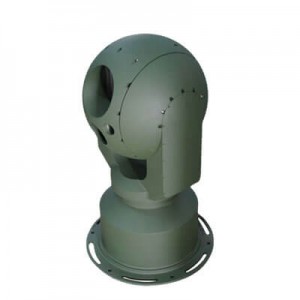

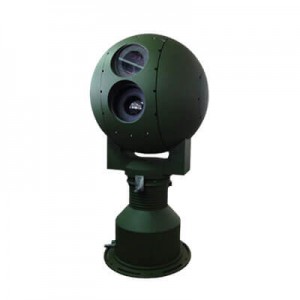

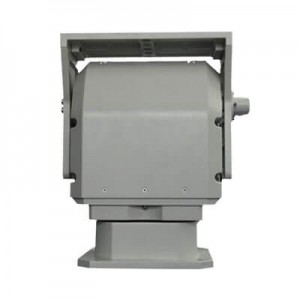

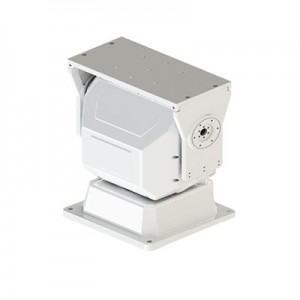

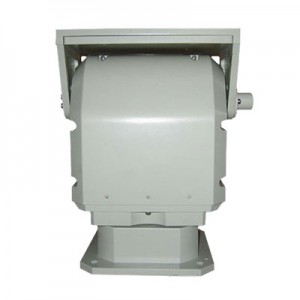

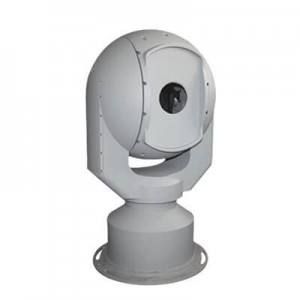

Intelligent variable speed PTZ is a device that integrates intelligent control technology on the basis of traditional PTZ to achieve intelligent adjustment of PTZ speed. It has significant advantages in the field of high-end heavy-load PTZ. There are heavy-load intelligent variable speed PTZ, medium-load intelligent variable speed PTZ, photoelectric turntable
2.Working Principle
The intelligent variable speed gimbal has built-in sensors and intelligent control systems. The sensors collect real-time gimbal operation information, such as current speed, rotation angle, status of the equipment on board, surrounding environment data, etc. The control system analyzes and processes the information sent by the sensor based on preset programs and algorithms. When the system detects changes in the speed and direction of the target being photographed or monitored, the system automatically adjusts the motor drive parameters to allow the gimbal to rotate at the appropriate speed and direction to achieve accurate tracking of the target.
3. Main Feature
a.Maximum load capacity up to 18Kg/22kg/35kg/50kg
b.Supports adaptive functions for multiple lens preset positions
c.High repeatability, up to ±0.2°
d.The housing is made of high-strength aluminum alloy die-casting material
e.Adopts high-precision, high-strength gear transmission, self-locking when power is off
f.Horizontal 360° continuous rotation
g.Protection level IP66
h.Optional pan/tilt position value, camera focal length value, focus value and other information feedback functions
4.Custom Option
1.Load capacity: According to the weight and size of the actual mounted equipment, the mechanical structure and transmission components of the pan-tilt are optimized
2.Rotation angle: The horizontal and vertical rotation angle range of the pan-tilt is customized
3.Rotation speed: The rotation speed of the pan-tilt is flexibly set according to the speed requirements of the actual application scenario
4.Protection level: In dusty and humid outdoor environments, the protection level can be increased to IP66 or even higher to ensure that the internal electronic components and mechanical structure of the pan-tilt are not eroded by dust and rain; in industrial environments with corrosive gases, the pan-tilt housing and internal key components are specially treated with anti-corrosion to enhance the corrosion resistance of the equipment.
5.Communication interface : according to the connected control system or equipment, a variety of communication interfaces are customized, such as RS232, RS485, Ethernet interface, etc., to ensure that the pan-tilt is seamlessly connected with the existing system.
6.Communication protocol: Supports customization of different communication protocols, such as Modbus, ONVIF, etc., to meet the communication needs between different brands of equipment and systems, and realize efficient data transmission and control command interaction.
7.Appearance design: The appearance of the gimbal can be customized according to the customer's brand image or the overall style of the usage scenario, including color, logo, etc., so that the gimbal can be better integrated into the overall environment.
8.Installation method: Provide a variety of installation methods for customization, such as wall mounting, hanging mounting, column mounting, etc. At the same time, special mounting brackets and accessories can be customized according to the on-site installation space and equipment layout to ensure that the gimbal is installed stably and conveniently.
