Pneumatic electrical slip ring DHS099-24-1Q
DHS099-24-1Q Series Pneumatic-Electrical Slip Ring Description
Ingiant DHS099-24-1Q series pneumatic electrical slip ring outer diameter 99mm ,it consists of 24 channels ,2A of each circuit ,housing material aluminum alloy ,working speed 0-300 rpm ,small size and light weight.
Typical Applications
Remote control systems, transmission and control of digital and analog signals
Radar, antenna systems
Video surveillance systems
Product Naming Description
1.Product type: DH—electrical slip ring
2.Installation method: S—solid shaft slip ring
3.Outer diameter:099-99mm
4.Number of electrical signal: 24-24 electrical channel
5. Pneumatic number ：1Q-1 pneumatic passage

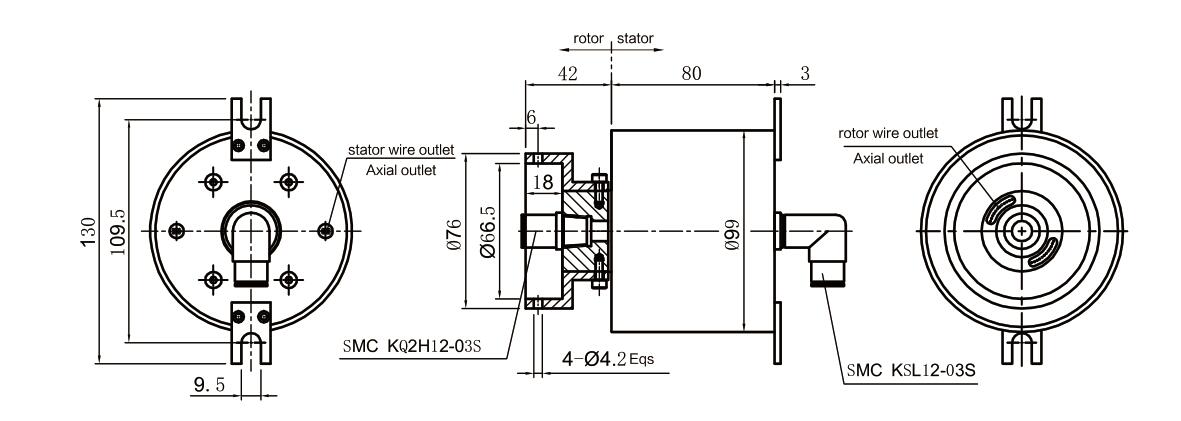

DHS099-24-1Q Series Pneumatic-Electrical Slip Ring Standard Drawing
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
DHS099-24-1Q Pneumatic-Electrical Slip Ring Technical Parameters
| Pneumatic Channel Parameters | |||
| No of Channels | 1 Ring or Custom | ||
| Interface Thread | G 1/8" | ||
| Flow Hole | Φ12 | ||
| Medium | Compressed air | ||
| Working Pressure | 1Mpa | ||
| Working Speed | ≤200rpm | ||
| Working temperature | -30℃～+80℃ | ||
| Electrical technical | Mechanical technical | ||
| No of Channels | 24 | Speed range | 0-300rpm |
| Rated Current | 2A | Protection level | IP55 |
| Rated Voltage | 0-440VAC/240VDC | Structural material | Aluminum alloy |
| Contact resistance variation | ＜10mΩ | Working humidity | ＜70% |
| Insulation resistance | ≥500MΩ@500VDC | Electrical contact material | Precious metal |
| Electrical strength | 500VAC@50Hz,60s,2mA | Lead specification | 2A-AFP 2*0.15mm² |
| Working temperature | -20℃～+80℃ | Lead length | 500mm+20mm |
