HS-1RJ-003 Series RF Rotary Joint Description:
Ingiant HS-1RJ-003 series RF rotary joint single channel ,interface type SMF-f(50Ω),frequency range DC-40GHz,the coaxial contact design makes the connector have ultra-high bandwidth and no cut-off frequency. the overall size is small, the connector is plug-in and easy to install.
Typical Applications:
Various military radars, ship-borne satellite communication devices, vehicle-borne satellite communication equipment, satellite vehicles, emergency rescue command vehicles, high-end robots, rotating turrets on vehicles, remote control systems, radar antennas, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, etc.
Product Naming Method:
- 1.Product type: HS—Solid shaft slip ring
- 2.channels: RJ-rotary joint, XX-the number of channels
- 3.Identify number
- For example: HS-2RJ (2 channel rotary joints)

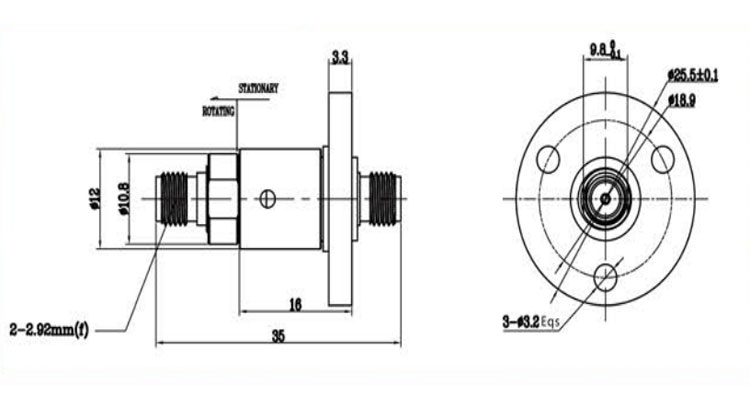

HS-1RJ-003 RF Rotary Joint Standard Drawing :
If you need design more 2D or 3D drawing ,please send informations to our via email [email protected],our engineer will make it for you as soon ,thank you
HS-1RJ-003 RF Rotary Joint Technical Parameter Table:
| Technical parameters | |
| Channels | Channel 1 |
| Interface type | SMF-f(50Ω) |
| Frequency range | DC-40GHz |
| Average power | 5w@DC-1GHz/2W @10-18GHz/1W @18-40GHz |
| Maximum standing wave ratio | 1.4@DC-18GHz/1.7 @18-26.5GHz/1W @2.0 @26.5-40GHz |
| Standing wave ratio fluctuation value | 0.15 |
| Insertion loss | 0.5dB @DC-18GHz/1.0dB @18-26.5GHz/[email protected] @26.5-40GHz |
| Insertion loss variation | 0.1dB |
| Isolation | 50dB |
