RF Rotary Joint HS-2RJ-003
HS-2RJ-003 Series RF Rotary Joint Description
Ingiant HS-2RJ-003 series RF rotary joint double-channel coaxial ,interface type SMF-f(50Ω),frequency range DC-6GHz,the coaxial contact design makes the connector have ultra-high bandwidth and no cut-off frequency. The overall size is small, the connector is plug-in and easy to install.
Typical Applications
Various military radars, ship-borne satellite communication devices, vehicle-borne satellite communication equipment, satellite vehicles, emergency rescue command vehicles, high-end robots, rotating turrets on vehicles, remote control systems, radar antennas, medical systems, video surveillance systems, submarine operation systems to ensure national or international security systems, emergency lighting equipment, robots, exhibition/display equipment, etc.
Product Naming Description

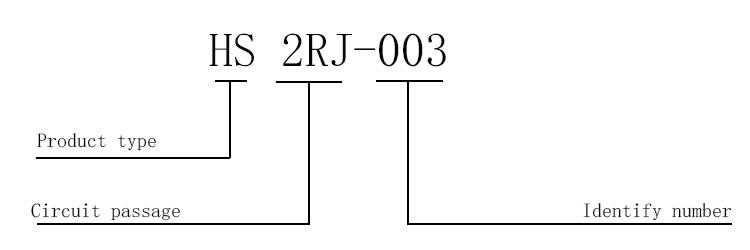

1.Product type: DH—electrical slip ring
2.Circuit passage: 2RJ-2 RF Rotary Joint
3.Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: HS-2RJ-003 ,if there are more of this model in the future, and so on -003 , -004, etc.

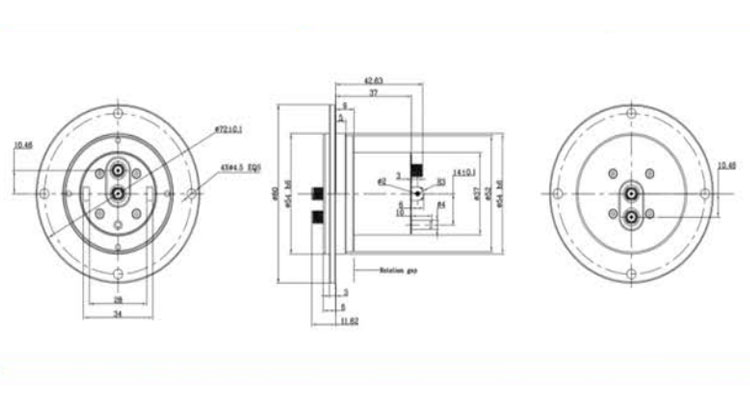

HS-2RJ-003 Series RF Rotary Joint Standard Drawing
If you need design more 2D or 3D drawing ,please send information to our via email [email protected],our engineer will make it for you as soon ,thank you
HS-2RJ-003 RF Rotary Joint Technical Parameter Table
| Technical parameters | ||
| Channels | Channel 1 | Channel 2 |
| Interface type | SMF-F(50Ω) | SMF-F(50Ω) |
| Frequency range | DC-6GHz | DC-6GHz |
| Average power | 50W | 10W |
| Maximum standing wave ratio | 1.35 | 1.5 |
| Standing wave ratio fluctuation value | 0.1 | 0.15 |
| Insertion loss | 1.5dB | 1.5dB |
| Insertion loss variation | 0.15dB | 0.15dB |
| Isolation | 60dB | 60dB |
