RF Rotary Union

What is a RF Rotary Joint?

RF Rotary Joint, also known as RF slip ring or microwave rotary joint, is a device specially designed to transmit RF (Radio Frequency) signals between rotating parts and fixed parts. It can ensure the continuity and stability of high-frequency electrical signals while maintaining mechanical rotation, and is suitable for application scenarios that require transmission of signals within the radio frequency range.

Various types, such as:
Coaxial rotary joints: have coaxial input and output terminals, one connector rotates and the other is fixed. Its power handling and frequency range are limited by the connector Limitation.
Waveguide rotary joint: The input and output ends are waveguide interfaces, one terminal rotates and the other is fixed, and the operating frequency is limited by the waveguide size.
Coaxial to waveguide RF rotary joint: One end is a waveguide interface and the other end is a coaxial interface, and the working frequency is limited by the waveguide size. Frequency is limited by waveguide size and connector type.

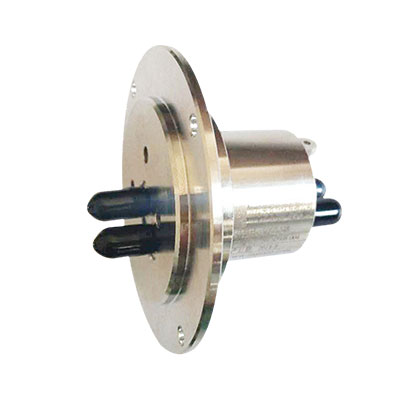

Ingiant company design RF Rotary Joint is coaxial rotary joint ,working frequency can reach 40 GHz,there are 1 channel, 2 channels, and 3 channels to meet the needs of different scenarios.

RF Rotary Joint HS Series Main Features

1. a.Specially designed for radio frequency signal transmission, the highest frequency can reach 40 GHz
2. b.Coaxial contact design makes the connector have an ultra-wide bandwidth and no cut-off frequency
3. c.Multi-contact structure, effectively reducing relative jitter
4. d.The overall size is small, the connector is plugged and used, and it is easy to install

RF Rotary Joint HS Series Customized Specifications

1. a.Rated current and voltage
2. b.Rated rotating speed
3. c.Operating temperature
4. d.Number of Channels
5. e.Housing material and color
6. f.Dimensions
7. g.Dedicated wire
8. h.Wire exit direction
9. i.Wire length
10. j.Terminal type

RF Rotary Joint HS Series Typical application

Suitable for military and civilian vehicles, radar, microwave wireless rotating platforms

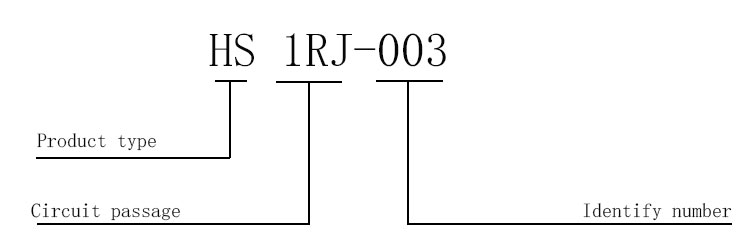

RF Rotary Joint HS Series Naming Description of Model

1. 1.Product type: HS—Solid shaft slip ring
2. 2. channels: RJ-rotary joint, XX-the number of channels
3. 3.Identify number
4. For example: HS-2RJ (2 channel rotary joints)
