Standard hole diameter 50mm through hole conductive slip ring 4 channels 64A

Short Description:

Through-hole conductive slip ring  DHK050-4-64A

DHK050 series through-hole conductive slip ring has a hole diameter of 50mm and an outer diameter of 120mm. It is suitable for rotating electromechanical systems with a diameter less than 50mm and is used for 360-degree transmission of power or signals.

Features

  • Multi-contact brush contact design, long service life
  • Integrated structural design, easy to install
  • IP 51 protection level, IP68 can be customized
  • Can integrate multiple signals and be compatible with multiple data protocols
  • Maintenance-free use


Product Detail

Product Tags

DHK050-4-64A

The main parameters

Number of circuits

4

Working temperature

“-40℃~+65℃”

Rated current

2A.5A.10A.15A.20A

Working humidity

<70%

Rated voltage

0~240 VAC/VDC

Protection level

IP54

Insulation resistance

≥1000MΩ @500VDC

Housing material

Aluminum Alloy

Insulation strength

1500 VAC@50Hz,60s,2mA

Electrical contact material

Precious metal

Dynamic resistance variation

<10MΩ

Lead wire specification

Colored Teflon insulated & tinned stranded flexible wire

Rotating speed

0~600rpm

Lead wire length

500mm + 20mm

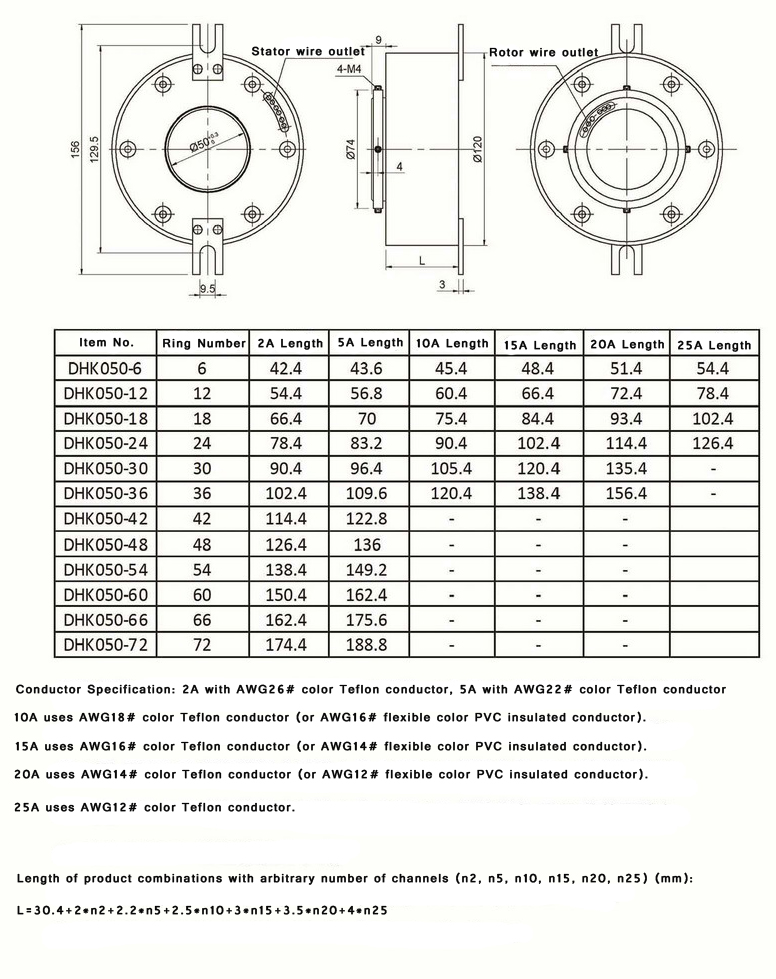

Standard product outline drawing:

DHK050

Through-hole conductive slip ring  DHK050-4-64A

DHK050 series through-hole conductive slip ring has a hole diameter of 50mm and an outer diameter of 120mm. It is suitable for rotating electromechanical systems with a diameter less than 50mm and is used for 360-degree transmission of power or signals.

Features

  • Multi-contact brush contact design, long service life
  • Integrated structural design, easy to install
  • IP 51 protection level, IP68 can be customized
  • Can integrate multiple signals and be compatible with multiple data protocols
  • Maintenance-free use



Typical applications

  • Automated machinery
  • cable tray
  • Robot/Rotation Sensor
  • Display/display equipment
  • Packaging Machinery
  • Industrial turntable
  • Medical/pharmaceutical equipment
  • Marking machine
  • Filling machinery
  • CNC machine tools

QQ图片20230322163852

Our Advantage

  1.  Product advantage: High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance. 10 million revolutions of quality assurance, so that you have no worries to cooperate with us.
  2.  Company advantage: Ingiant provide both OEM and ODM services for world famous brands and customers, our factory covers an area of more than 6000 square meters of scientific research & production space and with a professional design & manufacturing team of more than 100 staffs, our strong R&D strength make us be able to meet customers’ different requirement.
  3.  Excellent after-sales and technical support service:Customized, accurate and timely service for customers in terms of pre-sales, production, after-sales and product warranty, our goods are guaranteed for 12 months from date of sale, under guaranteed time non human damage, free maintenance or replacement for quality problems arising from the products.

QQ截图20230322163935
