Standard low noise through hole slip ring hole diameter 25mm for automatic packaging machine

Short Description:

25mm through hole slip ring



DHK series through hole slip rings are specially designed with a central hole to facilitate the installation of hydraulic channels, pneumatic channels or drive shafts. They adopt advanced brush-bush multi-point contact to ensure reliable contact with extremely low friction.


Product Detail

Product Tags

DHK025-50-5A

The main parameters

Number of circuits 50 Working temperature “-40℃~+65℃”
Rated current 2A.5A.10A.15A.20A Working humidity <70%
Rated voltage 0~240 VAC/VDC Protection level IP54
Insulation resistance ≥1000MΩ @500VDC Housing material Aluminum Alloy
Insulation strength 1500 VAC@50Hz,60s,2mA Electrical contact material Precious metal
Dynamic resistance variation <10MΩ Lead wire specification Colored Teflon insulated & tinned stranded flexible wire
Rotating speed 0~600rpm Lead wire length 500mm + 20mm

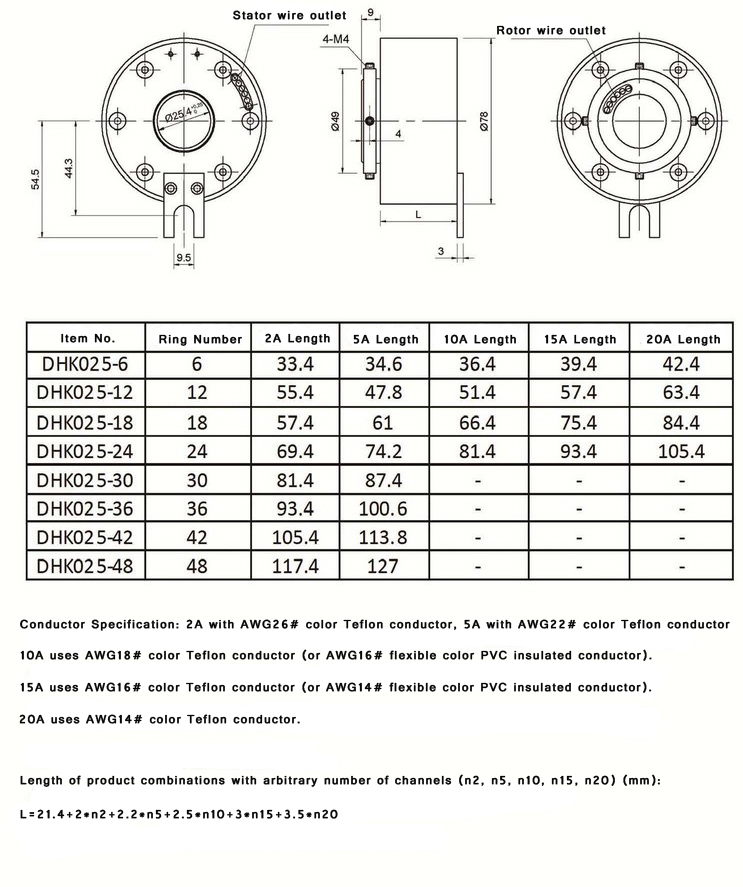

Standard product outline drawing:

DHK025

25mm through hole slip ring



DHK series through hole slip rings are specially designed with a central hole to facilitate the installation of hydraulic channels, pneumatic channels or drive shafts. They adopt advanced brush-bush multi-point contact to ensure reliable contact with extremely low friction.

Features

  • Super long life, maintenance-free
  • Through hole diameter is optional from 3mm-500mm;
  • The conductive slip ring adopts a modular design, which can be arbitrarily expanded according to the power and signal requirements, and provides different electrical path combinations;
  • High sealing level is optional, up to IP68.
  • Adopt advanced precious metal multi-point contact fiber brush technology, which has higher reliability
  • We can provide non-standard customization with fast delivery, reliable quality and competitive price according to customer requirements.

QQ图片20230322163852



Our Advantage

  1. Product advantage: Cost effective,High quality,IP protection rated,Suitable for extreme environments, Explosion proof units, High reliability low maintenance, Integration of high frequency channels , Standard units and custom design, Transmission of high definition video with high frame rate, 360 degree continuous panning, Integration of rotary joints and Ethernet, Fully gimbaled systems, Twist capsule integration ,Long life.
  2. INGIANT adheres to the business philosophy of “customer-centered, quality-based, innovation-driven”, seeks to win the market with high-quality products and considerate services, in terms of pre-sales, production, after-sales and product warrenty, we provide customized service to meet various demands of clients so Ingiant obtained a excellent reputation from the industry.
  3. Customized advantage: Leading Manufacturer of Standard, Customized Slip Ring & Rotary Unions for Many Industries.High Quality Components, Lower Costs, Over 800 Million Revolutions, 20+Years Working Life,Premium Expert Service,Reliable Quality,Competitive Price.

QQ截图20230322163935
