Through Bole Slip Ring ID80mm with 33 channels
|
DHK080-33 |
|||
|
The main parameters |
|||
| Number of circuits | 33 | Working temperature | “-40℃~+65℃” |
| Rated current | 2A.5A.10A.15A.20A | Working humidity | ＜70% |
| Rated voltage | 0~240 VAC/VDC | Protection level | IP54 |
| Insulation resistance | ≥1000MΩ @500VDC | Housing material | Aluminum Alloy |
| Insulation strength | 1500 VAC@50Hz,60s,2mA | Electrical contact material | Precious metal |
| Dynamic resistance variation | ＜10MΩ | Lead wire specification | Colored Teflon insulated & tinned stranded flexible wire |
| Rotating speed | 0~600rpm | Lead wire length | 500mm + 20mm |

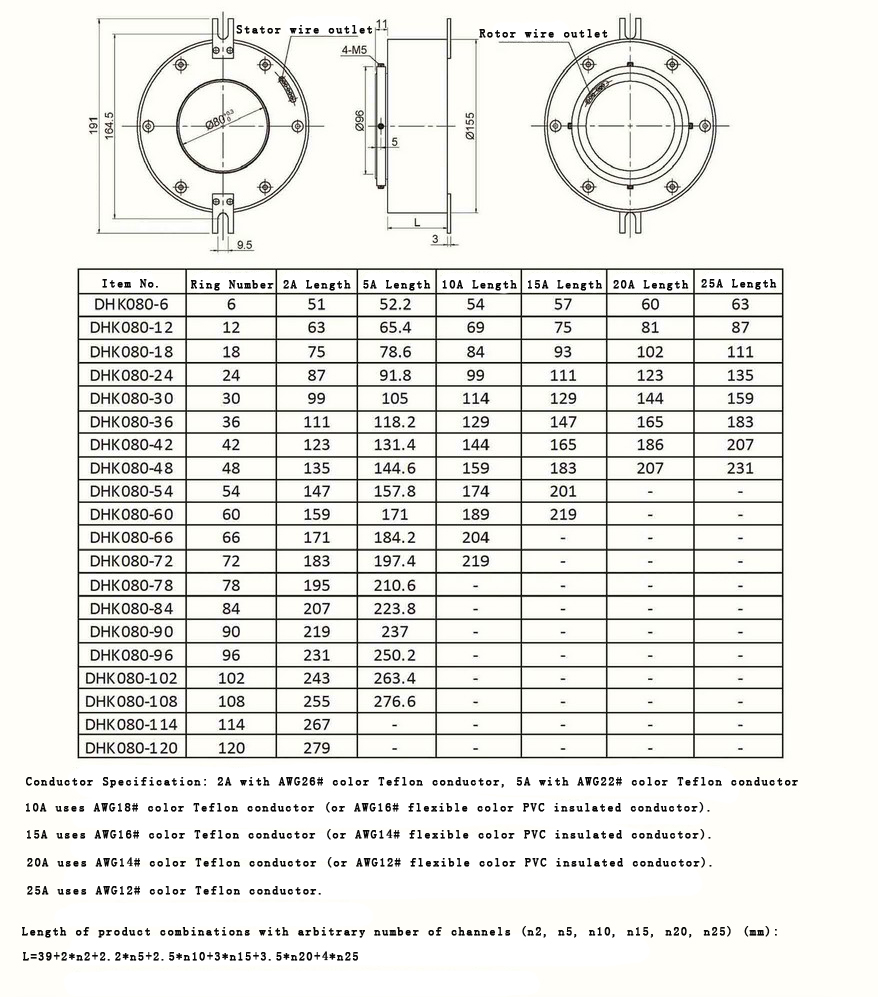

Standard product outline drawing:
Through hole slip ring ：Standard inner diameter 80mm
Customization supported, standardized products inner diameter :3-500mm, Current:2-1000A
DHK080-33 series through hole slip rings, Inner hole 80mm, outer diameter 155mm, suitable for rotating electromechanical systems with a diameter less than 80mm, Standard model supports 1-48 power rings(0-20A/ring) or 1-96 signal rings(0~5A/ring).Through hole slip ring totally meets with continuous transmission of power, signals, weak current, high current, and high voltage under 360-degree unrestrained rotations. Low torque, low electrical noise, low loss, and easy maintenance as the main features.
Features
- Multi-point brush contact material ensure long life
- Integrated structure design for easy installation
- Standard model supports 1-48 power rings(0-20A/ring) or 1-96 signal rings(0~5A/ring)
- IP 54 (IP65-IP68 can be customized)
- Both the data bus agreement compatible
- Free maintenance
Typical application
- Automatic machines
- Cable reels
- Robotics, rotary sensors, urgent illumination equipment
- Exhibit / display equipment
- Packaging
- Rotary table
- Medical, Pharmaceutical equipment
- Converting machines
- Capping machines
- Labeling machines
- Filling machine
- Machine tools
