What is Fiber Optic Rotary joints?
Fiber Optic Slip Ring, sometimes also called smooth ring or fiber optic rotary joint, is a device specially designed to transmit optical signals between rotating parts and fixed parts. Unlike traditional electrical slip rings, fiber optic slip rings process optical signals instead of electrical signals, which makes it particularly suitable for applications that require high-speed data transmission, high bandwidth, low loss and electromagnetic interference immunity.
Features
- 1.Fiber optic-electric slip ring for single-mode or multi-mode systems
- 2.Full bidirectional rotation
- 3.Integrate with existing electrical slip ring design
- 4.Fully enclosed structure
- 5.Fiber optic transmission signal, no leakage, no electromagnetic interference, can be transmitted over long distances
- 6.Small size, high sealing, high protection level
- 7.No contact, no friction, high speed, long life
- 8.Can tailor the required products for customers
Customized specifications
- 1.Various fiber sizes and fiber optic lengths
- 2.Fiber type
- 3.Fiber optic connector
- 4.Fiber length
- 5.Number of fiber channels
Typical Application
- 1. Long distance (>10KM) transmission
- 2.High-speed data transmission
Naming description of model
- 1.Product type: HS—Solid shaft slip ring
- 2.channels: Number (number of optical channels) +F
- 3. Fiber type: 9/125 (single mode), 50/125 (multi-mode), 62.5/125 (multimode)
- 4.Working wavelength: 850nm, 1310nm, 1550nm
- 5.Pigtail: length 1.2m, S (customer specified);
- 6.encapsulation - armor;
- 7.connector form FC/ST/SC/LC/N=no connector;
- 8.end face form PC (flat), APC (inclined)
Fiber Optic Rotary Joints Product List
| Model | Pictures | NO of Channels | Working wavelength | Working temperature | RPM | |
| HS-1F-001 | 1 | 650-1550nm | -20℃～+60℃ | 2000rpm | ||

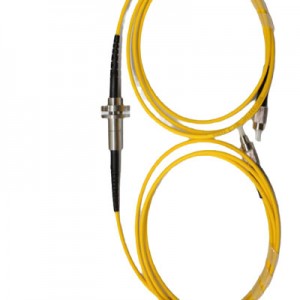

| HS-1F-002 | 1 | 850-1550nm | -20℃～+60℃ | 2000rpm | ||
| HS-NF-001 | 2～4 | 850-1550nm | -20℃～+60℃ | 300rpm | ||
| HS-NF-002 | 2～31 | 800-1550nm | -20℃～+60℃ | 2000rpm | ||
| HS-NF-003 | 2～7 | 850-1550nm | -20℃～+60℃ | 300rpm | ||
| HS-NF-004 | 2～40 | 850-1550nm | -20℃～+60℃ | 300rpm | ||
| MJX Series | 1 | 650-1650nm | -40℃～+85℃ | 2000rpm | ||
| RPC Series | 1 | 650-1650nm | -40℃～+85℃ | 2000rpm | ||
| MJ2 Series | 2 | 1310/850nm or 1310/1550nm | -40℃～+72℃ | 100rpm | ||
| MJN Series | 2～3 | SingelMode 1270-1610nm or Multi Mode 850nm or 1310nm |
-40℃～+72℃ | 200rpm | ||
| MXN Series | 2～3 or 4～7 | SingelMode 1270-1610nm or Multi Mode 850nm or 1310nm |
-40℃～+72℃ | 300rpm | ||
| PJ2 Series | 2 | 650nm | -50℃～+85℃ | 1000rpm | ||
| JXN Series | 2-7 or 8-12 or 13-19 | SingelMode 1270-1610nm or Multi Mode 850nm or 1310nm |
-45℃～+75℃ | 200rpm |
