What is flange slip ring?
The Solid Shaft Flange Slip Ring combines the features of a solid shaft slip ring and a flange slip ring and is a specially designed electrical slip ring.
It not only has a central through hole to allow cables, fluid lines or other components to pass through,
but also has a flange for easy installation on mechanical equipment.

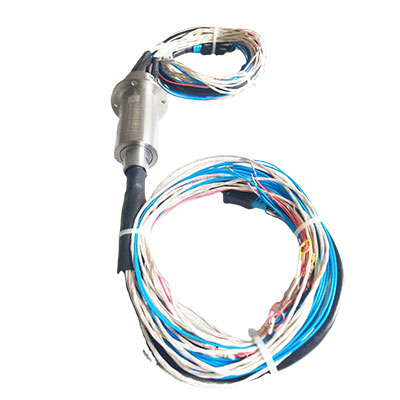

DHS Series Solid Shaft Flange Slip Ring
Ingiant provides DHS series solid shaft slip ring is a compact power transmission device that implement the signal and current transmission between two relative rotating mechanisms. The beam brush type multi-point contact is used to ensure reliable contact under extremely low friction. It can be customized according to customer needs. The current is optional from 2 amperes to 2000 amperes, which can fully meet your different transmission schemes.
DHS Series Flange Slip Ring Features
- 1.Transmit analog and data signals
- 2.Compatible with data bus protocol
- 3.Long life, maintenance-free
- 4.Easy to install
- 5.360° continuous rotation to transmit power and data signals
DHS Series Flange Slip Ring Customized Specifications
- 1.Inner diameter, outer diameter, length
- 2.Rotating speed
- 3.Circuits
- 4.Current & voltage
- 5.Wire length, connector
- 6.Housing material and color
- 7.Protection level
- 8.Signal and power transmitted separately or mixed
DHS Series Slip Ring Typically Applications
- 1.Military equipment
- 2.Medical equipment
- 3.Wind power equipment
- 4.Manufacturing and control equipment
- 5.Robot, radar antenna
- 6.Magnetic actuator, rotary sensor
- 7.Construction machinery, testing equipment, packing machinery

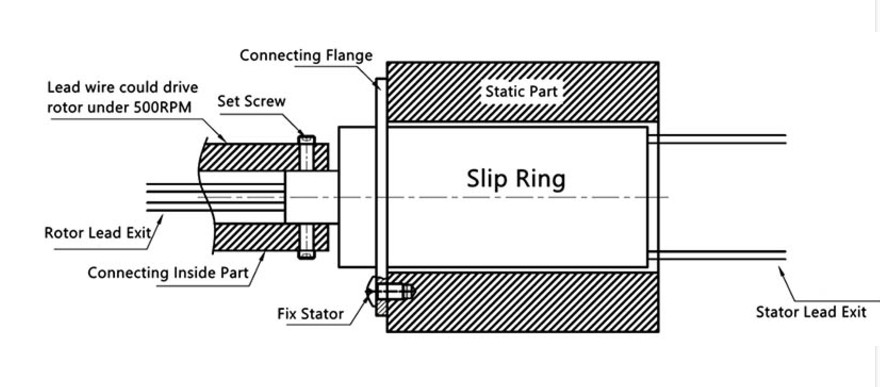

DHS Series Flange Slip Ring Installation Manual
Inner circle transmission mode: Use the equipment transmission fork to clamp the slip ring flat position of the shaft head to achieve synchronous rotation.
Outer circle transmission mode: Use slip ring outer circle spigot and flange round hole to fix with customers’ equipment with screws.

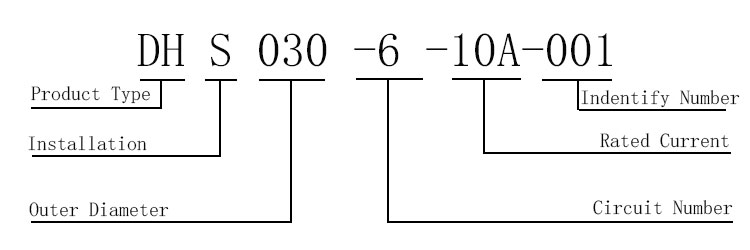

DHS Series Flange Slip Ring Naming Description of Model
- 1.Product type: DH—electric slip ring
- 2.Installation method: S—solid shaft slip ring
- 3.Outer diameter of solid shaft slip ring
- 4.Total circuits
- 5.The rated current or it will not be marked if it passes through a different rated current for the circuits.
- 6.Identify number: --XXX; In order to distinguish different specifications of the same product model, the identification number is added after the name. For example: DHS030-6-10A-002 has two sets of products with the same name, the cable length, connector, installation method, etc. are different, you can add the identification number: DHS030-6-10A-002; if there are more of this model in the future, and so on -003 , -004, etc.
DHS Series Flange Slip Ring Recommend Product List
Product Model | Pictures | NO of Rings | Rated Current | Current Voltage | Insulation resistance | Operating speed |
Operating temperature |
Protection level |
Material | |
DHS013-50 | 50 rings or Custom | 0.8A | 0-240VAC/VDC | ≥200MΩ@500VDC | 0-300rpm | -40℃~+80℃ | IP51 | Stainless steel | ||
DHS016-6 | 6 rings or Custom | 1A | 0-240VAC/VDC | ≥100MΩ@500VDC | 0-1200rpm | -40℃~+65℃ | IP51 | Stainless steel | ||
DHS022 | 15 rings or Custom | 5-3A,5-2A,1-HD-SDI(1080P/30Hz) | 0-120VAC/VDC | ≥100MΩ@500VDC | 0-500 rpm | -40℃~+65℃ | IP51 | Stainless steel | ||
DHS025 | 30 rings or Custom | 8-5A,other-2A | 0-240VAC/VDC | ≥500MΩ@500VDC | 0-300rpm | -40℃~+65℃ | IP51 | Stainless steel | ||
DHS030-6 | 6 rings or Custom | 2-10A,2-3G-SDI | 0-240VAC/VDC | ≥200MΩ@500VDC | 0-300rpm | -40℃~+65℃ | IP51 | Stainless steel | ||
DHS030-42 | 42 rings or Custom | 7-10A,2-3A,18-Signel,1-Gigabit | 0-240VAC/VDC | ≥500MΩ@500VDC | 0-300rpm | -40℃~+65℃ | IP51 | Stainless steel | ||
DHS039 | 23 rings or Custom | 4-20A,19-2A | 0-240VAC/VDC | ≥100MΩ@500VDC | 0-300rpm | -40℃~+65℃ | IP51 | Stainless steel | ||
DHS045-37 | 37 rings or Custom | 1-10A | 0-48VAC/VDC | ≥250ΜΩ@250VDC | 0-300rpm | -30℃~+85℃ | IP51 | Aluminum Alloy | ||
DHS050-101 | 101 rings or Custom | 3-20A,18-10A,Other 3A | 0-240VAC/VDC | ≥500MΩ@500VDC | 0-300rpm | -40℃~+65℃ | IP51 | Stainless steel | ||
DHS075-35 | 35 rings or Custom | 5-20A,Other 2A | 0-240VAC/VDC | ≥200MΩ@250VDC | 0-60rpm | -45℃~+85℃ | IP51 | Stainless steel | ||
DHS150-73 | 73 rings or Custom | 1-30A,28-10A,Other 5A | 0-380VAC/VDC | ≥1000MΩ@500VDC | 0-300rpm | -40℃~+65℃ | IP54 | Aluminum Alloy |
